AL40DB-010KD-2
Product code
AL40DB-010KD-2
Manufacturer

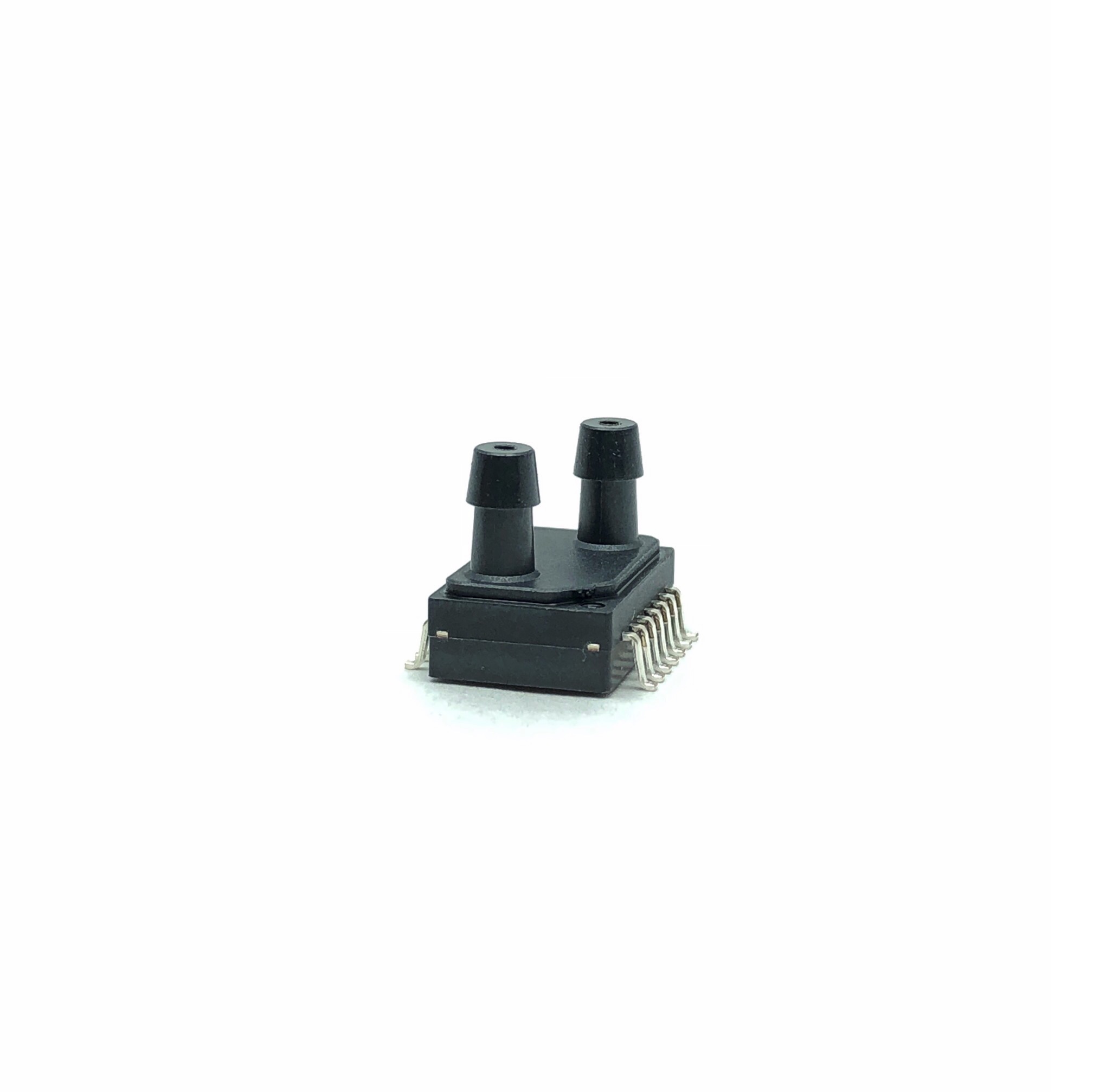

Fujikura pressure sensor is composed of a silicon piezo-resistive pressure sensing chip and a signal conditioning integrated circuit.
The low-level signal from the sensing chip is amplified, temperature compensated, calibrated, and finally converted to digital data that is proportional to the applied pressure.
Choosing the Slave Address for I2C interface is available.
Also available in Tape & Reel.
Accuracy
+/- 1.5% FS
Temperature compensation
-5 / +65°C
Pressure port length
5.15 mm
Mounting
SMD
Pin orientation
Opposite
Pressure port
Vertical
Pressure Type
Differential
Measurement range
10 kPa
Supply voltage
5.0 Vdc
Datasheet537.36 KB
