AG226-100KV
Product code
AG226-100KV
Manufacturer

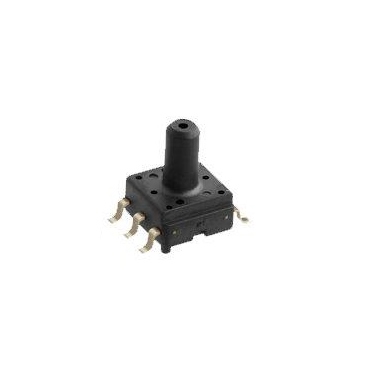

Piezoresistive pressure sensor, compensated and calibrated. PCB mounting DIP type. SMD mounting.
With ASIC integrated.
The AG family is characterized by
- low power consumption
- high accuracy
- pins and package compatible with XFPM and XFGM integrated pressure sensors
Accuracy
+/- 2.0% FS
Temperature compensation
0-85°C
Pressure port length
6 mm
Mounting
SMD
Pin orientation
Opposite
Pressure port
Vertical
Pressure Type
Vacuum
Measurement range
-100 kPa
Supply voltage
3.0 Vdc
Scheda tecnica756.28 KB
