KI1333

KI1333
Discontinued
KI1333
Product code
KI1333
Manufacturer

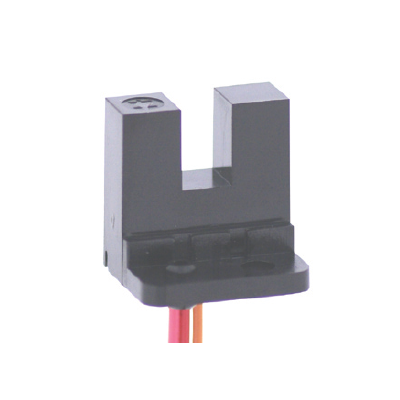

Model KI1333 consist of an Infra Red LED and a Photo IC(Digital Output). Other package has no aperture on the both light pass surface of the emitter an detector

Model KI1333 consist of an Infra Red LED and a Photo IC(Digital Output). Other package has no aperture on the both light pass surface of the emitter an detector

Feature:

  • Built-in amplifier, Open collector output type
  • High resolution slit width 0,5mm.
  • Visible light cut filter
  • Built in resistor for LED drive

Application:

  • Object passing for card reader, Bill exchanger.
  • Coin-passing for Auto vending machine an Amusement.
  • Object passing in Auto vender and Tiket vending machine.
  • Paper detection for O.A equipment.
Dust Proof
Yes
Slot Width
5 mm
Mounting
Wire & Connector
Output
Photo IC output
Output Mode
Digital high level
Series
KI Series
Output type
Open collector
