TV10 0071

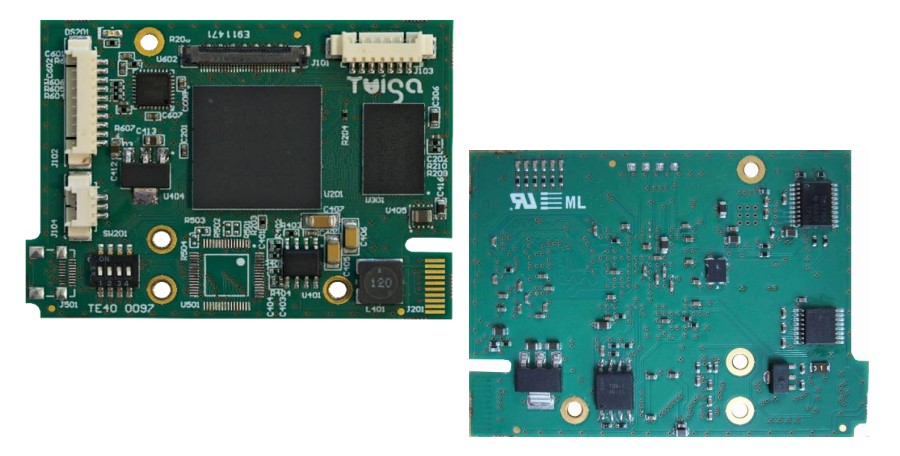

Analog HD / SD interface board for Sony Full-HD Camera Block (EV Family)

This board converts the LVDS output signal of the Sony FCB-EV camera block into analog YPbPr / YC / CVBS signals PAL or NTSC

Through Dip-Switches it is possible to enable the analogue output HD or SD.

For the CVBS output you can choose the Letter Box (16: 9) or Crop (4: 3) format

Through the RS232 interface and VISCA protocol it is possible to communicate with the camera block for the management of all the functions (zoom, focus, etc.)

A connector dedicated to the GPIO allows you to control zoom, focus and freeze using external buttons.

Can be purchased together with accessory kit TV50 0015.
