S-110
Product code
S-110
Manufacturer

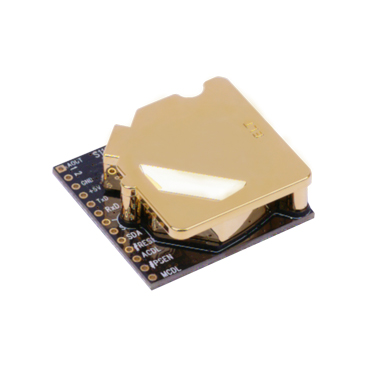

S-110 model is one of the world’s smallest single beam models which main features are Consistent stability and Temperature Change Effect Compensation.
Accuracy of ± 30 ppm ± 3%. Measurement ranges of 0-2000 ppm, 0-3000 ppm, 0-5000 ppm and 0-10000 ppm.
'G' version available for humidity resistance up to 99% RH for Application of Agricultural GreenHouse, Stock Raising,etc.
Accuracy
± 30ppm ± 3% of reading
Power Supply
5.0 Vdc
Dimension
33 x 33 x 13.1 mm
Measurement range
0-2000 ppm
0-3000 ppm
0-5000 ppm
0-10000 ppm
Humidity range
0-95% RH
0-99% RH
Target Gas
Carbon dioxide
Operating temperature
-10°C / +60°C
Output
Analog (0.5V - 4.5V)
I2C
UART
Datasheet949.23 KB
