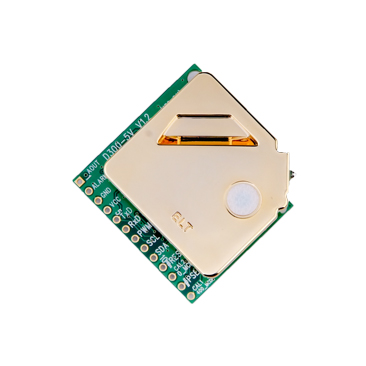

CH4-D3
Product code
CH4-D3
Manufacturer
As one of smallest dual channel combustible gas sensors, CH4-D3 can detect methane which is favored in LNG storage or oil station, providing excellent calibration algorithm, long-term stability and easy maintenance.
Measurement range: 0-50000 ppm (0-100% LEL)
Accuracy: ± 3% F.S.
Available in 'G' version to resist up to 99% Humidity for Application of Agricultural Green House, Stock Raising,etc
Accuracy
± 3% F.S.
Power Supply
5.0 Vdc
Dimension
33 x 33 x 13.1 mm
Measurement range
0-50000 ppm
Humidity range
0-99% RH
0-95% RH
Target Gas
Methane
Operating temperature
-20°C / +50°C
Output
I2C
UART
Analog (0.5V - 4.5V)
PWM
Datasheet865.99 KB
