HCM0905CX

HCM0905CX

Product code

HCM0905CX

Manufacturer

JL World

Electroacustic Transducer, Electro-Magnetic and PIN (self drive) mounting type

• Add to comparison
• Print product sheet

Add to quotation

• Description
• Features
• Download

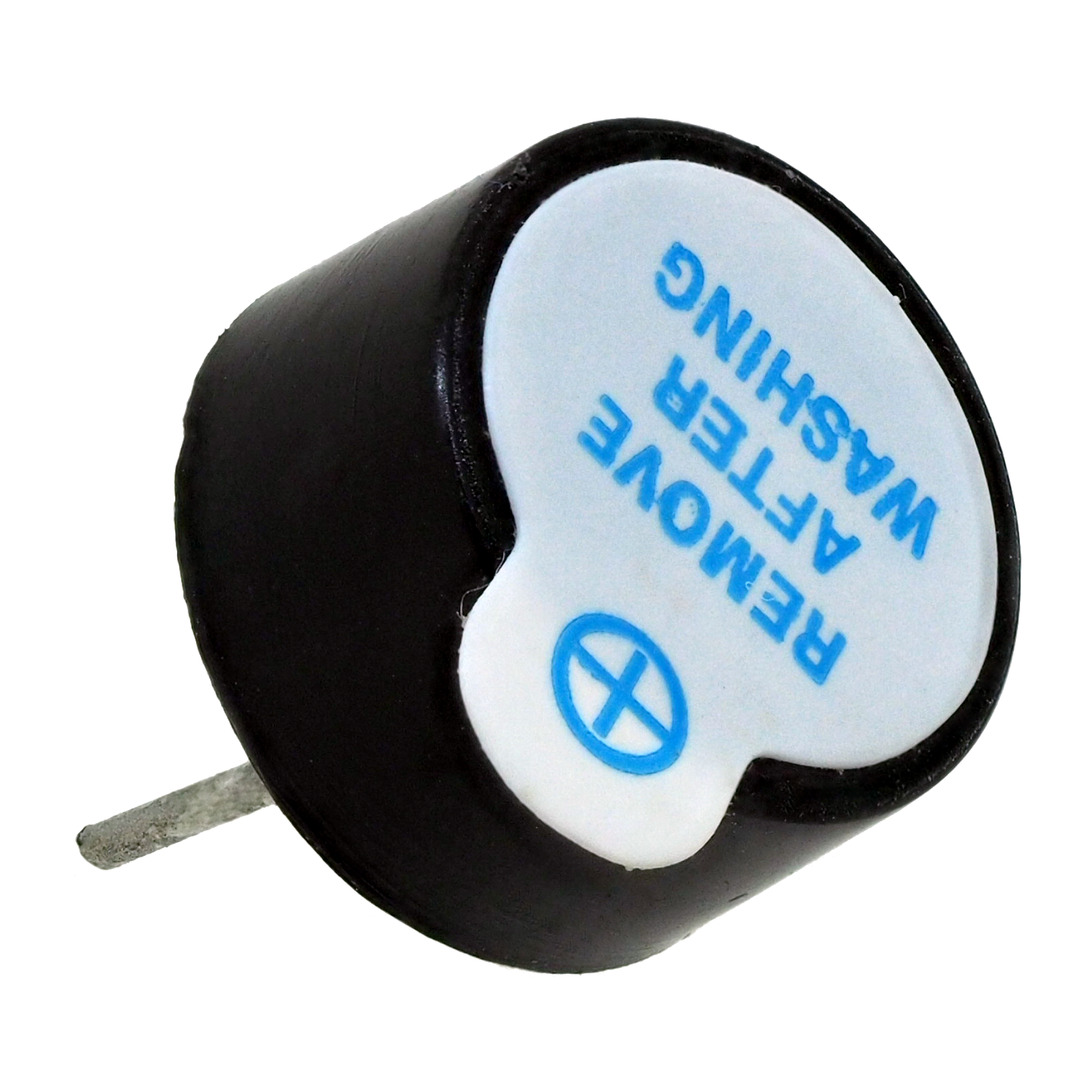

HCM0905CX is a JL World electromagnetic buzzer, PIN (self drive) mounting type.

Features:
Dimensions: Ø9.5x5 mm
Rated Voltage: 5 V
Operating Voltage: 3 ~ 7 V
Rated Frequency: 2700±200 Hz
Rated Current: <= 30 mA
SPL (sound pressure level) at 10cm: >= 80 dB

Rated Current (mA)

≤30

Rated Frequency (Hz)

2700±200

SPL at 10 cm (dB)

≥ 80

Technology

Electro-Magnetic

Operating temperature

-30 ~ +70

Operating Voltage (V)

3~7

Typology

Pin (Self Drive)

HCM09CX Datasheet216.07 KB
