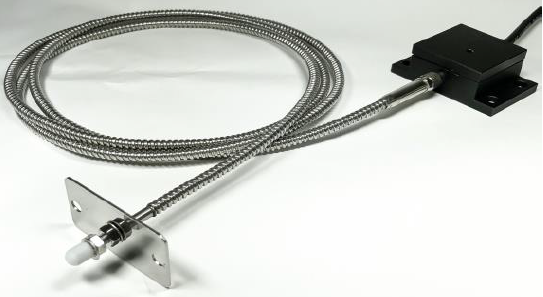

GUVx-T1xGC-xLO2.1
Product code
GUVx-T1xGC-xLO2.1
Manufacturer
Features: High Temperature Environment (under 200°C), Very Flexible Optical Fiber (Min. R20), Viewing angel 170 ̊ Wide angle measurement, UVV/UVA/UVB/UVC Detection, Optional Output Type (Current / Voltage), Optional Operating Voltage (5 V / 9 ~ 24 V).
Application: UV curing, UV lamp/LED monitoring.
Power Supply
5 V
9-24 V
Dimension
57 x 37 x 21
Half Angle (deg)
170
Wavelength
230-395 nm
220-370 nm
220-320 nm
220-280 nm
Operating temperature
-30 ~ +85 °C
-30 ~ +200 °C
Response Time
10 ms
Output
4-20 mA
0-5V
GUVx-T1xGC-xLO2.1712.21 KB
