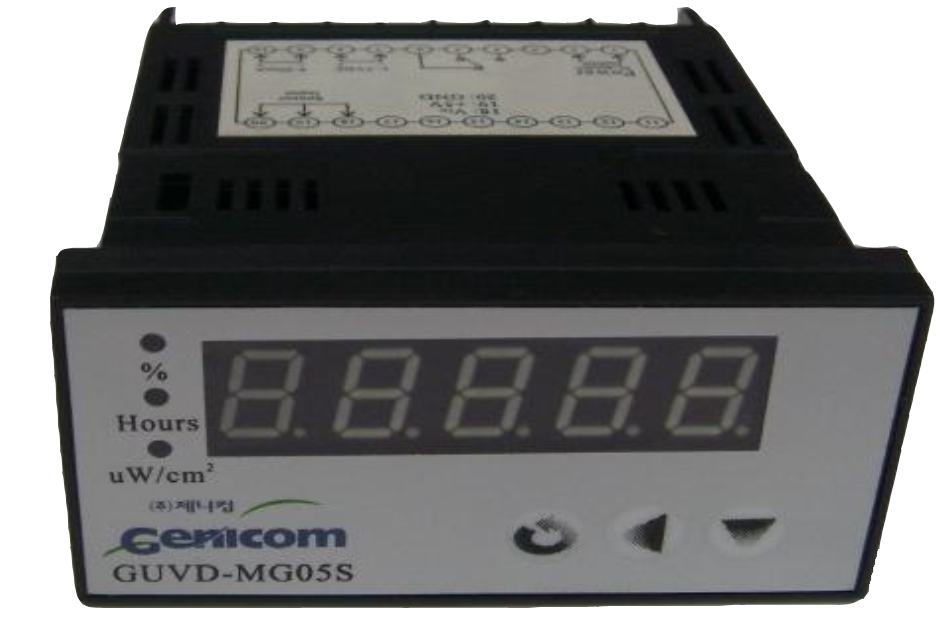

GUVx-S1xS5

Description
- Display: Absolute Power (AP), Relative Power (RP), and Accumulative Time (AT)
- Output: DC Voltage, Current, and Relay

Application by UV Probe
- Air/Curing: LA2, LA5, LA6
- Water treatment: LW5, LW9, LW10, LW11
- High Temperature: LO1
- Outdoor UV Index: H3

Features
- Fixing method: Panel Insertion
- Power: AC 85 ~ 265V (50/60Hz)
- Display:
  Absolute Optical Power: Max. 20 mW/cm2
  Relative Power (unit : %)
  Accumulative Time (unit : Hrs)
- Output:
  1 Relay (NO/NC)
  1-5 V Voltage (Depends on Relative Power)
  4-20 mA Current (Depends on Relative Power)
  Max power (5.1 version)
  RS485 Communication (5.1 version)
  Dose Display(mJ/cm²) (5.1 version)

Specifications
- Size: 96 mm X 48 mm X 112 mm
- Operating Temperature:
  Display : 0 ~ 50 C
  UV Sensor Probe: -30 ~ 85 C
- Detection Range:
  UVA : 220 ~ 370 nm
  UVB : 220 ~ 320 nm
