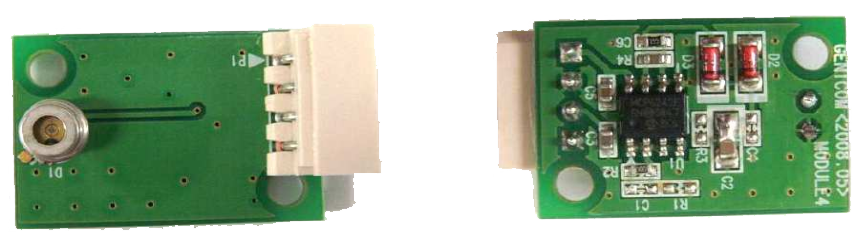

GUVx-T1xGM-LA
Product code
GUVx-T1xGM-LA
Manufacturer
Description: UV sensors of Genicom make the photocurrent under UV light but the level of photocurent is very low. This small signal is not easy to be checked by normal current measure equipments and it is not to fit input signal of analog-to-digital converter (ADC).
Features: Single Supply Voltage, Voltage Output.
Application
- GUVA-T11GM-LA: UV LED and UV Lamp Monitoring
- GUVB-T11GM-LA: UVB Lamp Monitoring
- GUVC-T10GM-LA: UVC Lamp Monitoring and Power Check Vout
Power Supply
1.8-5.5 V
Dimension
28 x 17 x 9
Wavelength
220-280 nm
220-320 nm
220-370 nm
Output
Voltage
Response Time
10 ms
