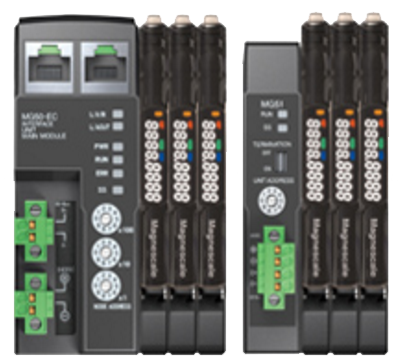

MG50/51/MF10-CM

Interface unit for Tough Sensor series. Output data from DF805/812 series can be calculated and controlled by PLC via EtherCAT/CC-Link fieldbus. DT series(general purpose type) can be connected by using MT20 series interpolator.

• MG50-EC (EtherCAT) / MG50-CL (CC-Link)
  • Fieldbus compatible main module interface unit. Maximum of 30 gauges can be connected to MG50-EC (maximum of 16 gauges for MG50-CL).
• MG51
  • Distribution module for MG50. When installing digital gauges over a long distance, extension cables aren't required when using a MG51. Ten gauges can be connected per unit. Maximum cable length is 30m.
• MF10-CM
  • Counter module for DF805S/812S series. MF10-CM is compatible with the MG50/51 series.
