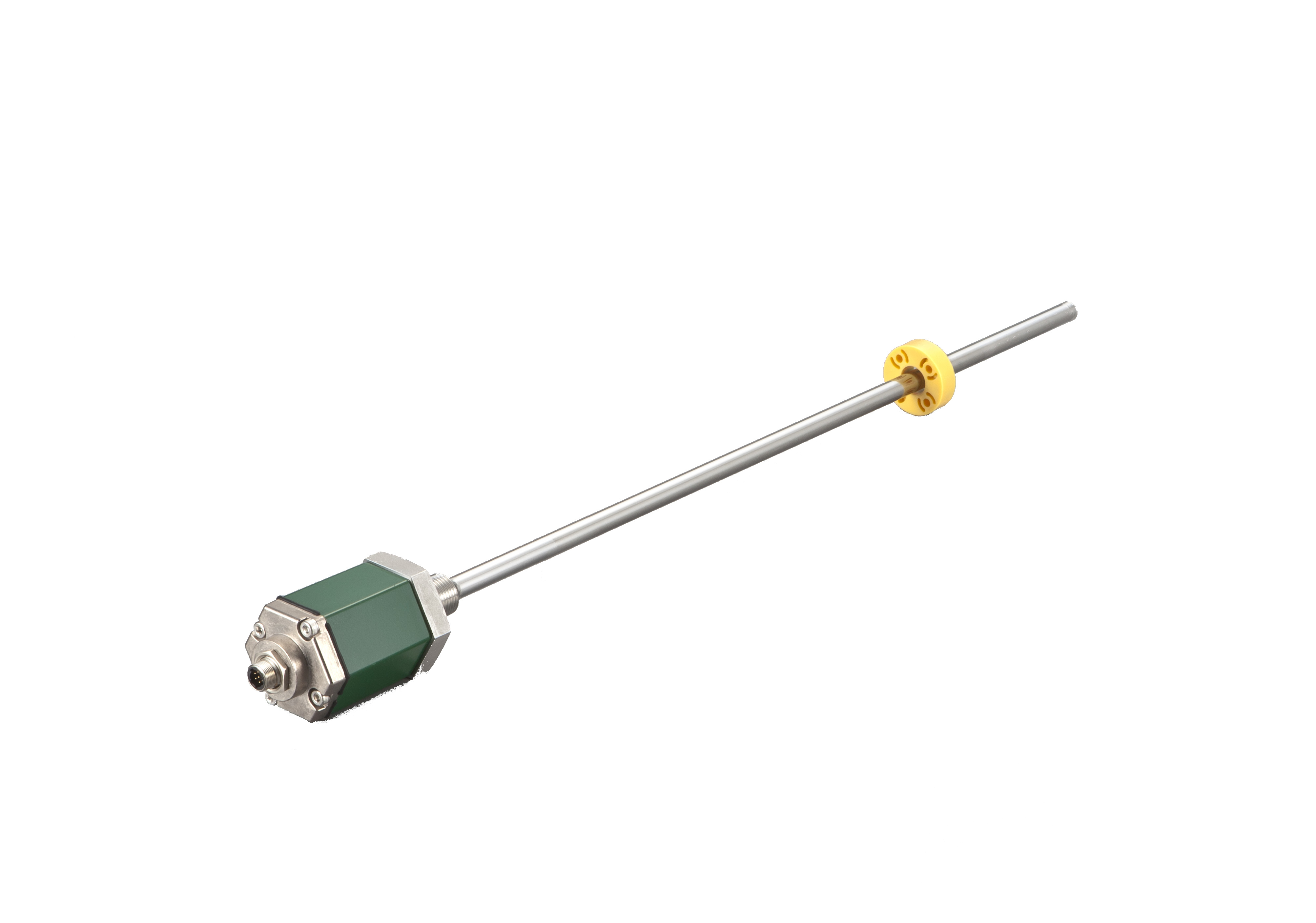

This magnetostrictive transducer uses a Profibus DP interface and allows the use of a maximum of 32 magnet on the same probe.
The element of the probe are detachable from the housing.
Power Supply
+24 (±2)VDC (70mA)
IP Index
IP67
Non-linearity
≤± 0.025%FS TYP
Max pressure
35MPa (rod type)
Repeatability
≤0.01%FS
Shock
100G (2msec)
Temp. drift
≤±15ppmFS/°C
Working temperature
From -20°C to +75°C
Output type
Profibus DPV0
Vibration
15G (20-100Hz)
