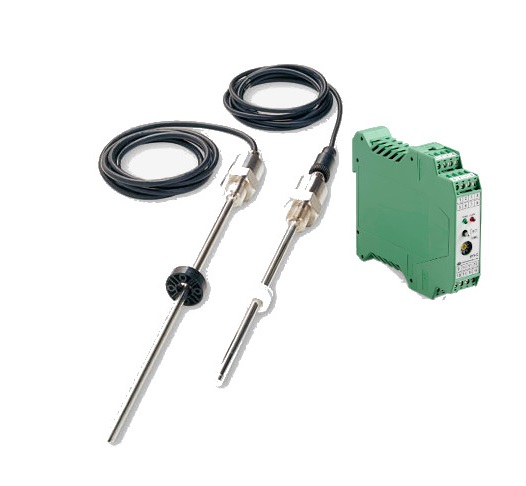

GYMS (probe) / GYHC (controller)
Product code
GYMS/GYHC
Manufacturer
The magnetostrictive transducer of GYMS series is the standard compact type, with the following characteristics:
Linearity: ≤± 0.025%FS
Protection: IP67
The probe GYMS can be associated with the controller GYHC, 0-10V o 4-20mA.
Power Supply
+24 (±2)VDC (100mA)
Sampling frequency
Std 1kHz
Cable
Std 1.5m (Option max. 100m)
IP Index
IP67
Non-linearity
≤± 0.025%FS TYP
Max pressure
35MPa (rod type)
Repeatability
≤0.01%FS
Resolution
≤0.01%FS
Shock
50G (2msec)
Temp. drift
≤±40ppmFS/°C (probe) ≤±50ppmFS/°C (controller)
Working temperature
From -20°C to +80°C
Output type
0-10V o 10V-0 / 4-20mA o 20-4mA
Vibration
6G
