GYGS (probe) GYHC (controller)
Product code
GYGS/GYHC
Manufacturer

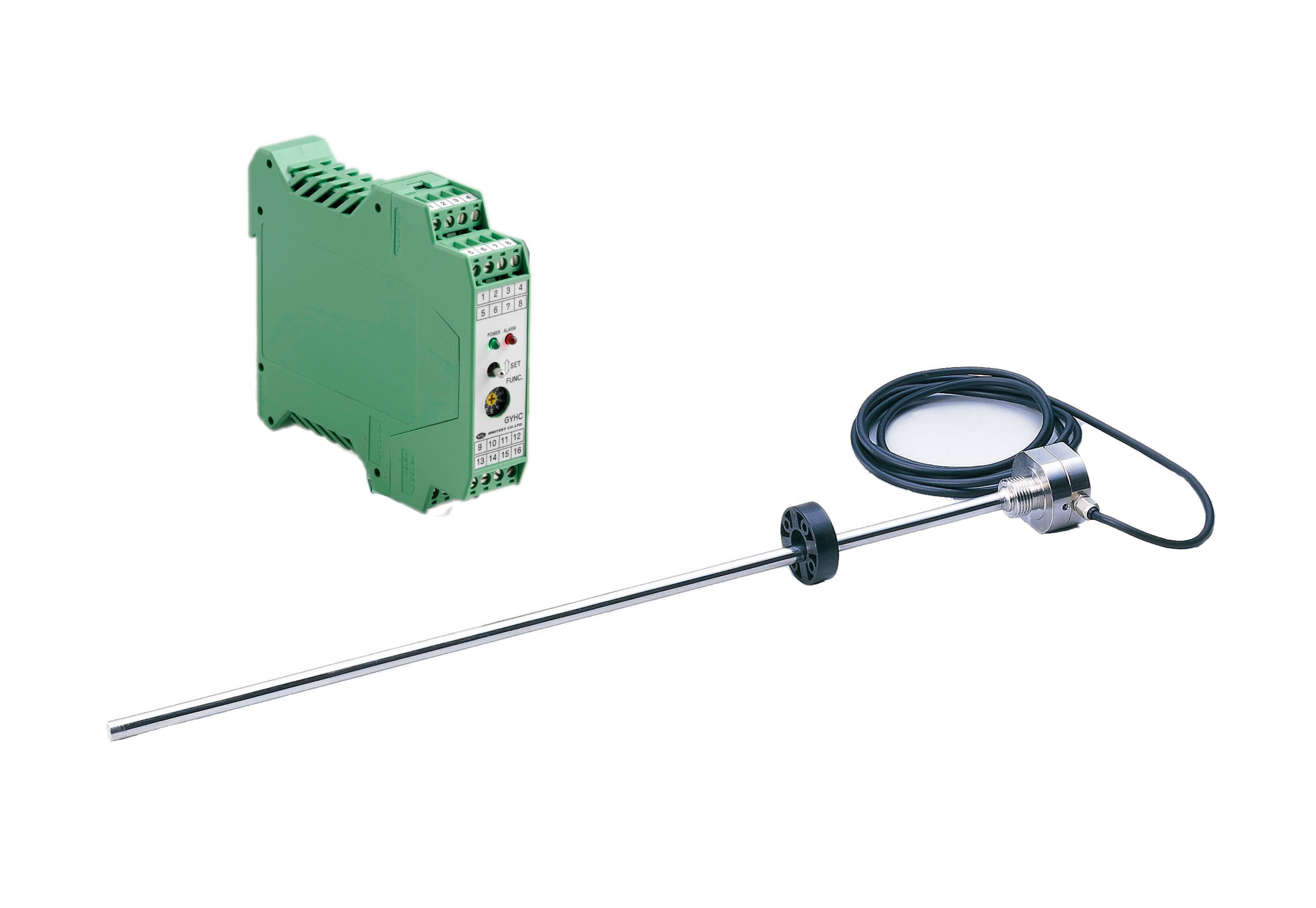

GYGS are a serie of probe in which the sensor head is extremely thin (20mm thick). It adopts new method of detecting magnetostrictive phenomena. When applied to hydraulic cylinder, its total length becomes space saving.
GYGS probe is used in combination with the GYHC controller which provides velocity output or digital output.
Power Supply
+24 (±2)VDC (100mA)
Sampling frequency
Std 1kHz
Cable
Std 1.5m (Option max. 100m)
IP Index
IP67
Non-linearity
≤± 0.025%FS TYP
Max pressure
35MPa (rod type)
Repeatability
≤0.01%FS
Resolution
≤0.01%FS
Shock
50G (2msec)
Temp. drift
≤±40ppmFS/°C (probe) ≤±50ppmFS/°C (controller)
Working temperature
From -20°C to +80°C
Output type
0-10V o 10V-0 / 4-20mA o 20-4mA
Vibration
6G
