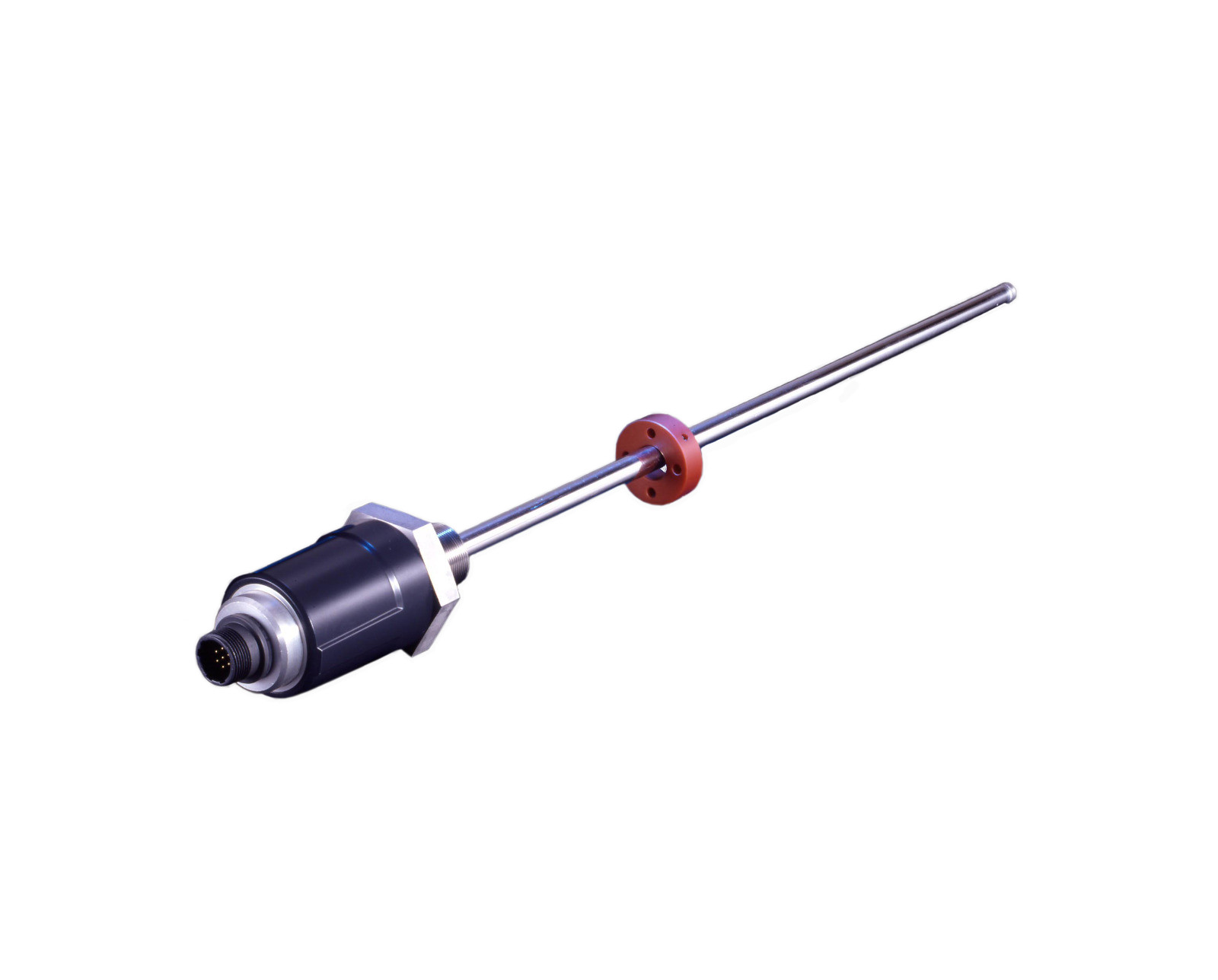

Thanks to the Surface Mount Technology, the entire signal processing electronics of GYcAT series is integrated intothe transducer's head.
GYcAT series have alarmoutput and is equipped with noise cancellation functions.
Power Supply
+24 (±2)VDC (100mA)
Sampling frequency
Std 1kHz
IP Index
IP67
Non-linearity
≤± 0.05%FS TYP
Max pressure
35MPa (rod type)
Repeatability
≤0.01%FS
Resolution
≤0.01%FS
Shock
50G (2msec)
Temp. drift
≤±40ppmFS/°C
Working temperature
From -20°C to +80°C
Output type
0-10V o 10V-0 / 4-20mA o 20-4mA
Vibration
6G
