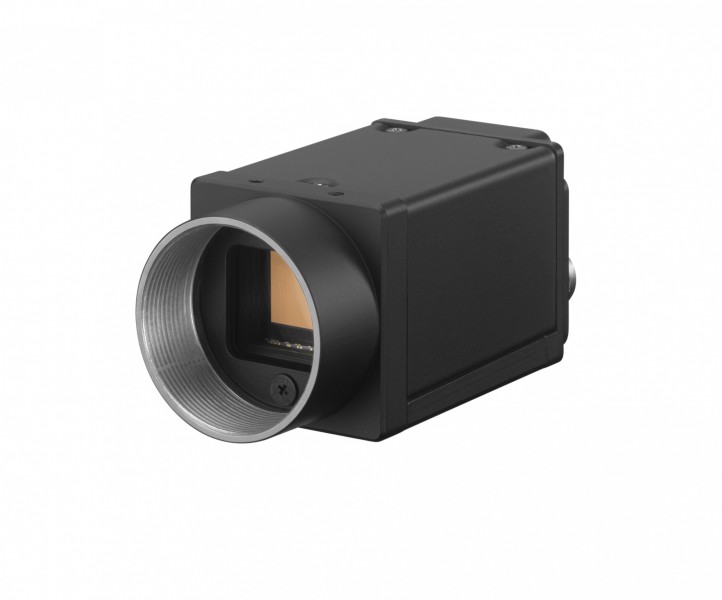

XCG-CG510C
Product code
XCG-CG510C
Manufacturer
The XCG-CG510C (colour) combines the best of Sony technology in a convenient form factor which is optimised for use within both the Industrial Vision and non-manufacturing vision markets. The XCG-CG510C draws upon Sony's market leading Global Shutter CMOS sensor technology, combining the IMX264 5.1MP sensor with a rich heritage of complete camera technology, bringing the best combination of performance and quality from a brand you can trust.
The XCG-CG510C incorporates the very latest Pregius high sensitivity technology for maximum visibility in challenging lighting environments.
The XCG-CG510C has a resolution of 2464 (H) x 2048 (V) with a frame rate of 23 fps and supports GigE Vision 1.2 / 2.0 with a one cable PoE capability.
Pixel dimension
3.45 um x 3.45 um
Frame rate
23 fps
Colour
Digital interface
Gigabit Ethernet (100BASE-TX / 1000BASE-T)
Lens mount
C mount
Number of effective pixel
2.464x2.056
