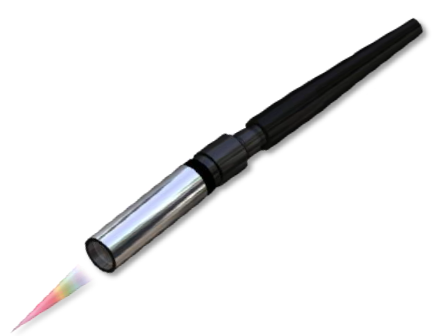

Orbit Confocal

• Compact, 8 mm diameter Transducer Gauge Head
• 1 mm or 5 mm measuring range
• 8 mm or 24 mm standoff distance
• Repeatable measurements to ±1 micron
• 30 micron diameter spot size
• Excellent for measurement on reflective surfaces
• Three Modes of Operation
• Single Probe
• Single Probe - Clear Material Thickness Measurement
• Dual Probe – Two heads on one controller with B-A or
B+A measurements
• Adjustment via LCD touch screen or Orbit® 3 controller
• Plugs into Orbit® 3, network for up to 150 different sensors
• USB, Ethernet TCP, RS232, Wireless Bluetooth, Modbus, and
Ethernet/ IP outputs available. Also, integrate with Orbit® ACS for
standalone systems.
