IG/2.0/S

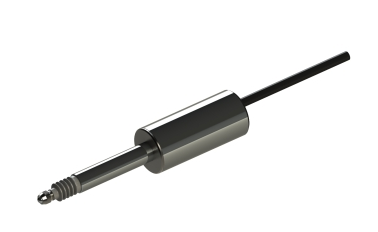

The IG/2.0/S is an integrated electronic probe offering direct analogue output, available in range 2 mm.

The probe is based on non-contact LVDT technology and includes a long-life linear ball bearing, removable carbide tip, viton gaiter and spring return. The high performance conditioning electronics ensure low noise and superior linearity while being able to cope with a wide supply range. The stainless steel body ensures robustness and the 8 mm diameter at the front is compatible with standard support.

Main technical features:
• Compactness
• Better mechanic repeatability
• High accuracy (<± 0.2% FSO)
• Ease of use with power supplies from 10Vdc to 30Vdc
• Analog outputs independent from power supplies
• New analog output in current (4-20 mA)
• New range of FS available (2mm, 5mm, 10mm, 20mm)
