Reader - Gate 2

License plate reading unit for gates with bar.

It includes 2 licenses for plates reading and can manage up to a total number of 4 plates cameras (requires additional licenses) with relative ambient context cameras.

It can be interfaced with PVZoom-IP, and Ladon video encoder.

Double authorization list with over 3000 recordable plates, automatic opening gate control, wiring with the registering groups via the data network, which can be centralized with the Reader MANAGER device.

It is able to read the number plates of over 30 nationalities (filter can be set to increase accuracy), reading a truck trailer number plate and checking the front and rear registration plate number and reading the license plate in free running mode (without external command), maximum frame rate 6 fps total.
The read plate can be sent via FTP, TCP/IP.

System configuration via Web page.

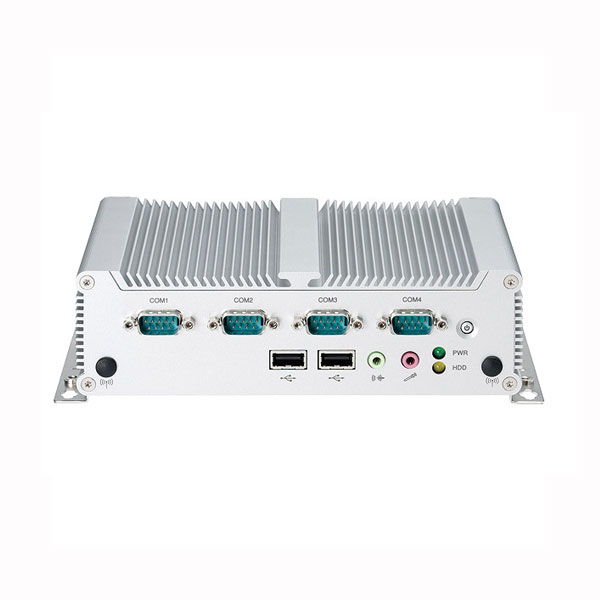

Industrial fanless processing system.
Power supply 12Vdc, 230Vac-12Vdc 5A power supply unit supplied.
Dimensions 185 x 50 x 132 mm (HxWxD)
Temperature range -5 + 55 ° C.
