AG416-050KG
Product code
AG416-050KG
Manufacturer

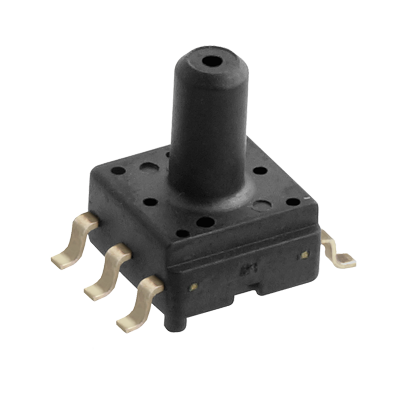

Piezoresistive pressure sensor, compensated and calibrated. PCB mounting SMD type.
With ASIC integrated.
Gauge: Positive pressure.
The AG family is characterized by
- low power consumption
- high accuracy
- pins and package compatible with XFPM and XFGM integrated pressure sensors
Accuracy
+/- 1.5% FS
Temperature compensation
0-85°C
Pressure port length
6 mm
Mounting
SMD
Pin orientation
Opposite
Pressure port
Vertical
Pressure Type
Gauge
Measurement range
50 kPa
Supply voltage
3.3 Vdc
Scheda tecnica535.27 KB
