AG30F-115KA
Product code
AG30F-115KA
Manufacturer

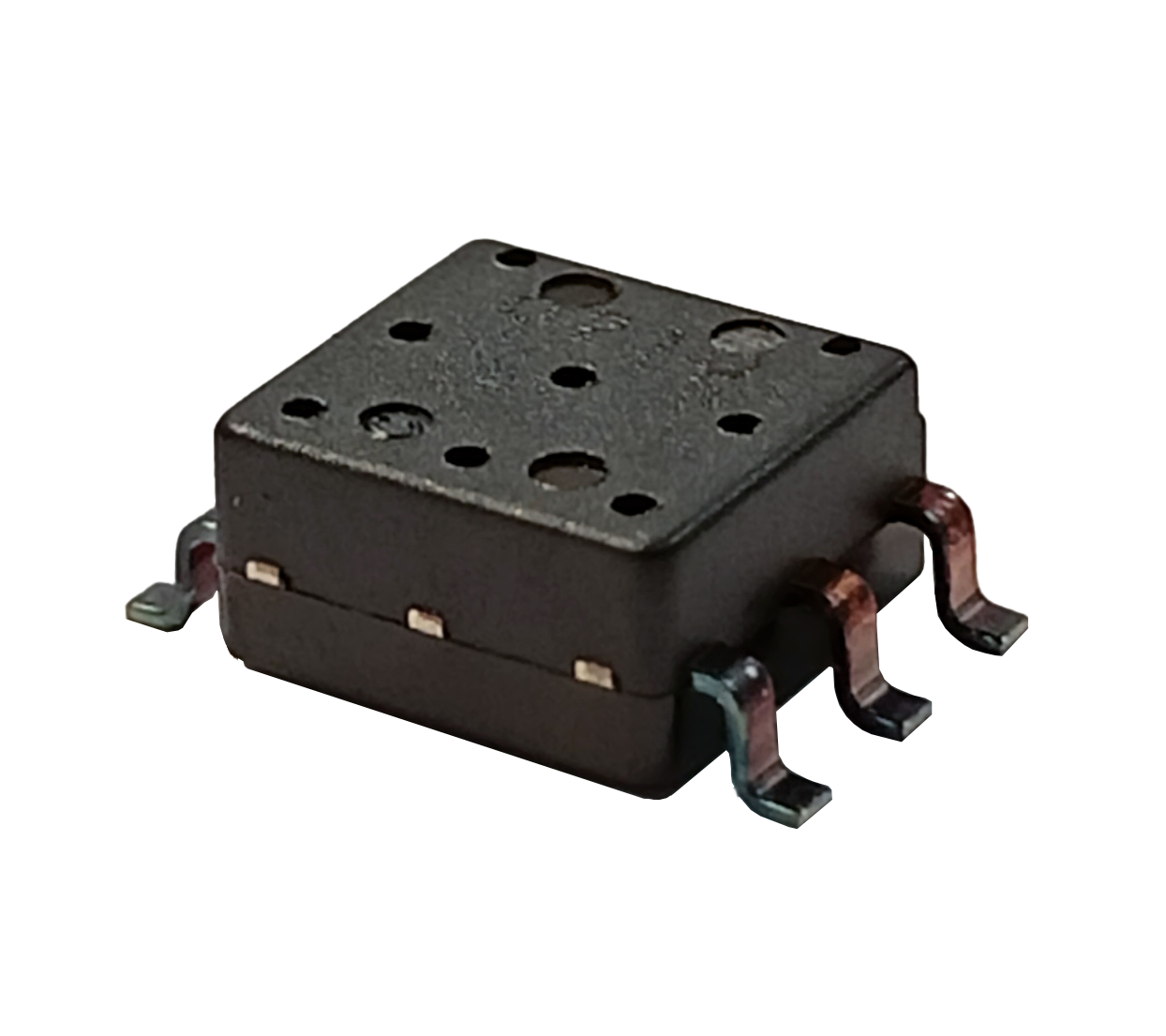

Piezoresistive absolute pressure sensor, compensated and calibrated.
The AG3 family is characterized by:
- Amplified and temperature compensated smooth analog output
- Low profile flat package
- Compatible with the XFAM/X3AM integrated pressure sensors
Accuracy
+/- 2.0% FS
Temperature compensation
0-85°C
Pressure port length
/
Mounting
SMD
Pin orientation
Opposite
Pressure port
Not present
Pressure Type
Absolute
Measurement range
115 kPa
Supply voltage
5.0 Vdc
datasheet_ag3xf-115ka.pdf441.28 KB
