KI3541

KI3541
KI3541
Product code
KI3541
Manufacturer

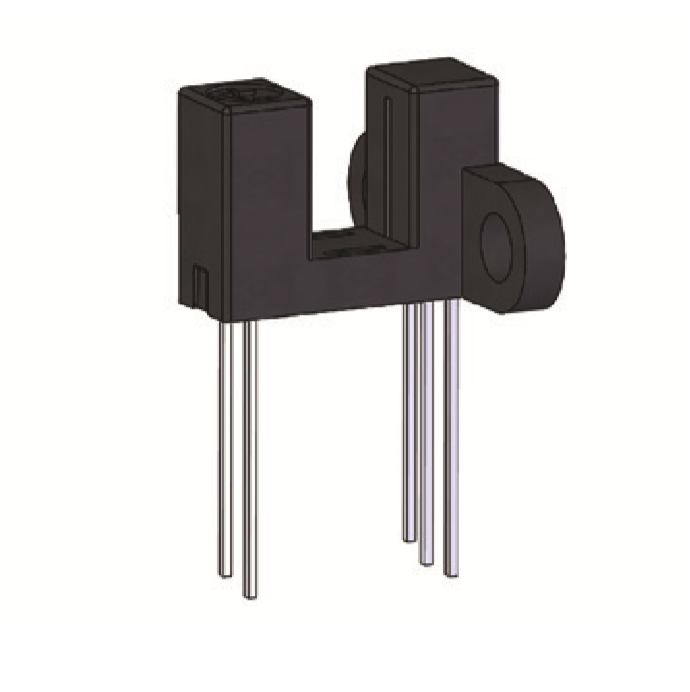

Model KI3541 consists of an Infra Red LED and a High sensitive Photo IC(Digital Outuput). Outer package has no aperture on the both light pass surface of the emitter an detector.

Model KI3541 consists of an Infra Red LED and a High sensitive Photo IC(Digital Outuput). Outer package has no aperture on the both light pass surface of the emitter an detector.

Feature:

  • Easy removing paper dust.
  • Built-in amplifier, open collecor output type.
  • High resolution slit width 0,5mm.
  • Visible light cut filter.
  • Other model of Phototransistor type: KI3544.

Application:

  • Object passing for card reader, Bill exchanger.
  • Coin-passing for Auto vending machine an Amusement.
  • Paper detection for O.A equipment.
Dust Proof
Yes
Slot Width
5 mm
Mounting
PCB
Output
Photo IC output
Output Mode
Digital low level
Series
KI Series
Output type
Open collector
Datasheet434.42 KB
