Product code
KI1236
Manufacturer

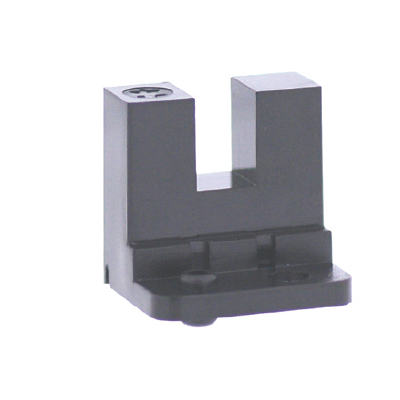

Photointerrupter KI1236 consists of an Infrared LED and a Photo IC with digital output.

Photointerrupter KI1236 consists of an Infrared LED and a Photo IC with digital output.

Its main features are:
- Dust proof;
- High resolution with a slit width of 0,5 mm;
- Visible Light-cut filter;
- Built in resistor for LED drive;

This photointerrupter is suggested for applications where it is necessary to detect the passage of objects, such as coins, banknotes, cards, paper, and thus in:
- Vending machines;
- Card readers, bill exchanger, coins passing;
- Ticketing machines;
- O.A. equipment;

Model KI1236 has an open collector output



Dust Proof
Yes
Slot Width
5 mm
Mounting
Connector
Output
Photo IC output
Output Mode
Digital low level
Series
KI Series
Output type
Pull-up
