KI1220

KI1220
KI1220
Product code
KI1220
Manufacturer

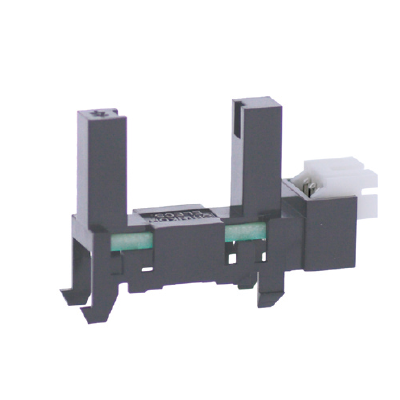

Model KI1220 consist of an Infra Red LED and a High sensitive Photo transistor.

Model KI1220 consist of an Infra Red LED and a High sensitive Photo transistor.

Feature:

  • 13mm or 15mm of Slot width type are available.
  • Visible light cut filter.
  • Wide Slot width-13mm,  Slot depth-12.2mm.

Application:

  • Object passing for card reader, Bill exchanger.
  • Coin-passing for Auto vending machine an Amusement.
  • Paper detection for O.A equipment.
Dust Proof
No
Slot Width
13 mm
Mounting
Snap-in & Connector
Output
Analog output
Output Mode
Digital high level
Series
KI Series
Output type
Pull-up
