XCG-CG240
Product code
XCG-CG240
Manufacturer

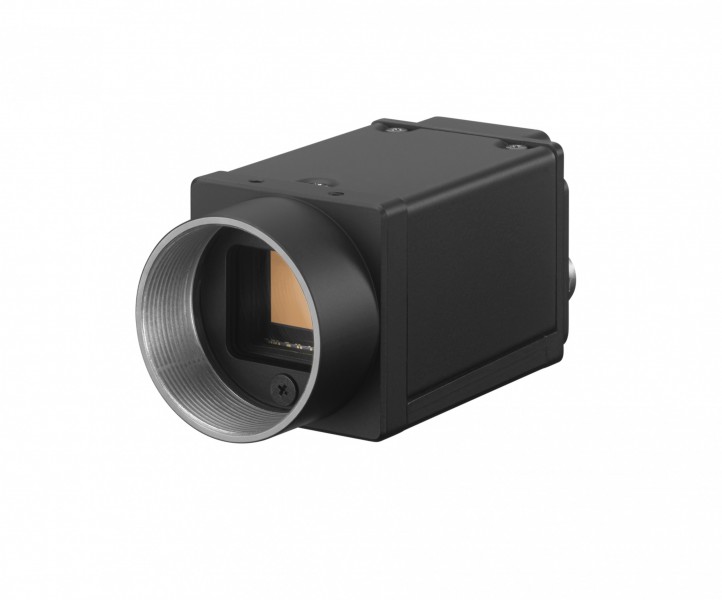

The XCG-CG240 (black & white) combines the best of Sony technology in a convenient form factor which is optimised for use within both the Industrial Vision and non-manufacturing vision markets. The XCG-CG240 draws upon Sony's market leading Global Shutter CMOS sensor technology, combining the IMX249 2,4MP sensor with a rich heritage of complete camera technology, bringing the best combination of performance and quality from a brand you can trust.
The XCG-CG240 incorporates the very latest Pregius high sensitivity technology for maximum visibility in challenging lighting environments.
The XCG-CG240 has a resolution of 1936 (H) x 1216 (V) with a frame rate of 41 fps and supports GigE Vision 1.2 / 2.0 with a one cable PoE capability.
Pixel dimension
5.86 um x 5.86 um
Frame rate
41 fps
Black & white
Digital interface
Gigabit Ethernet (100BASE-TX / 1000BASE-T)
Lens mount
C mount
Number of effective pixel
1.936x1.216
