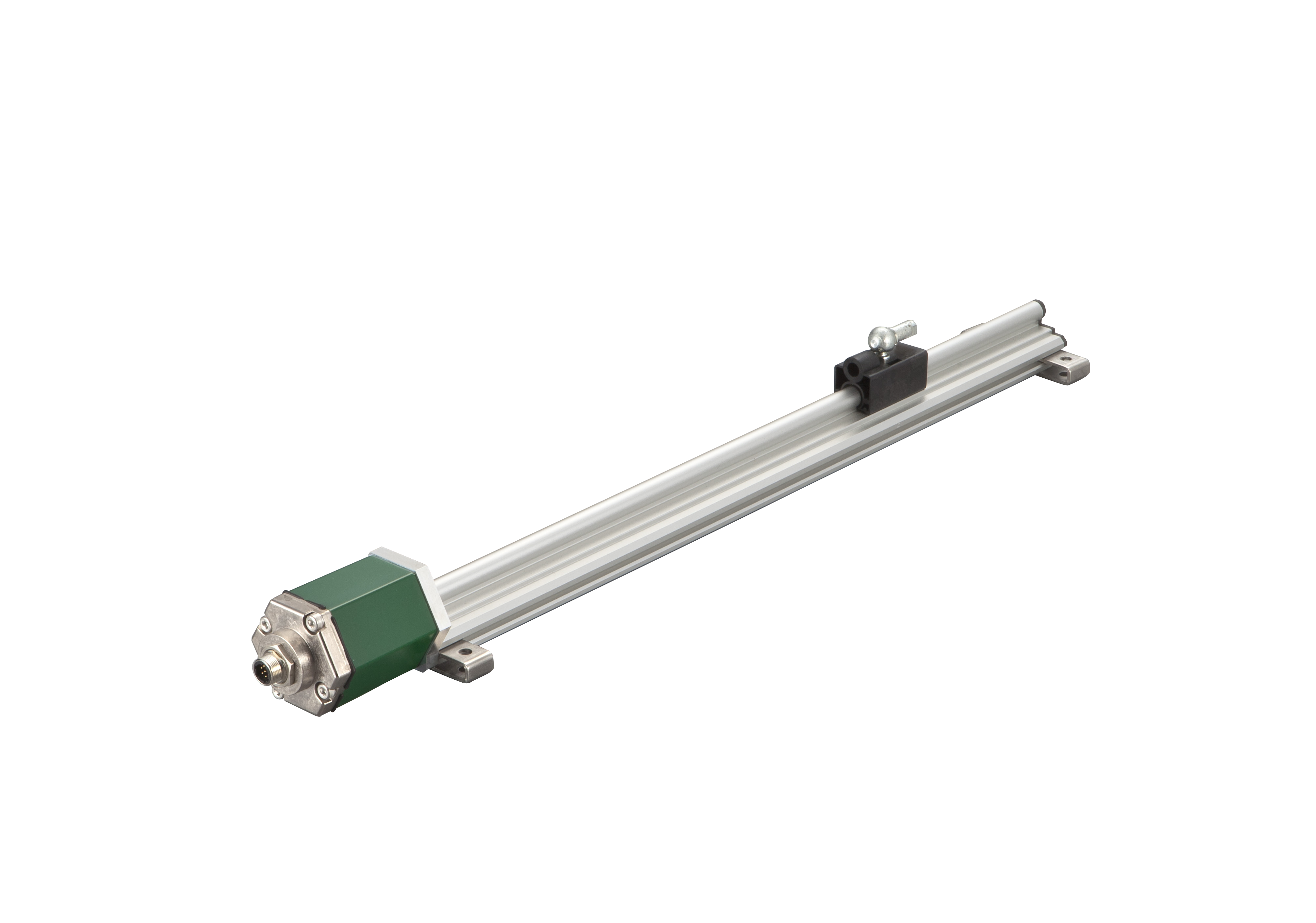

The inside probe element can be detached from the outer housing (standard function for GYSE). Additionally, use of flexible element as an option makes the exchange process extremely easy even under small work space. Using two pcs of magnet on the probe as another option, makes detecting each magnet position or their relative distance possible.
With the captive software (GPM), zero and gain adjustment is possible at user side.
16 bit resolution, high performance analogue output.
Power Supply
+24 (±2)VDC (100mA)
Sampling frequency
Std 1kHz
IP Index
IP67
Non-linearity
≤± 0.025%FS TYP
Repeatability
≤0.001%FS
Resolution
16 bit (1/65536)
Shock
100G (2msec)
Temp. drift
≤±20ppmFS/°C
Working temperature
From -20°C to +75°C
Output type
0-10V o 10V-0 / 4-20mA o 20-4mA
Vibration
15G (20-100Hz)
