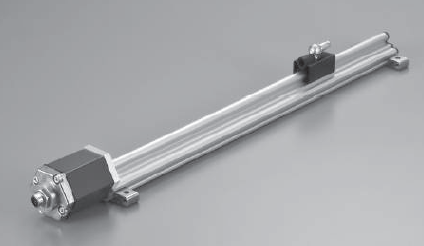

Resolution min. 1 µm, Profibus DP interface, detachable probe element, magnet max.32 pcs
Setting parameters (resolution, output) through profibus is possible.
Power Supply
+24 (±2)VDC (100mA)
IP Index
IP67
Non-linearity
≤± 0.025%FS TYP
Repeatability
≤0.001%FS
Resolution
Min. 1µm
Shock
100G (2msec)
Temp. drift
≤±15ppmFS/°C
Working temperature
From -20°C to +75°C
Output type
Profibus DPV0
Vibration
15G (20-100Hz)
