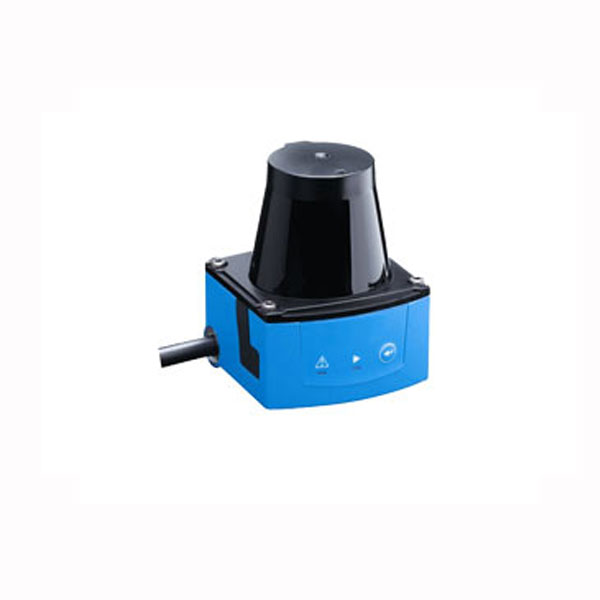

Laser scanning sensor for indoor use
Ray range 2m (4m diameter) with 10% reflectance (4m range limit - 8m diameter)
Scan angle 190 °
Scanning step 1°
Frequency 15Hz
Single echo technology
850nm laser source
Measurement error +/- 40mm
Response time 134ms
Configuration via USB interface
4 digital inputs
3 Adjustable alarm areas (selected through the inputs from a set of 16 preconfigured, modifiable as size and shape)
3 alarm outputs
1 "device ready" output
Power supply 10-18Vdc, 3W.
Operating temperature range -10 + 50 ° C.
Dimensions 60x60x79mm, weight 0.15Kg.
Blue color (RAL5012).
Operating field
Interno
Region number
3
Mimimun scan step
1°
Minimum scan range
4 metri
Scan range (10% reflectivity)
2 metri
Supply voltage
10-18Vdc
