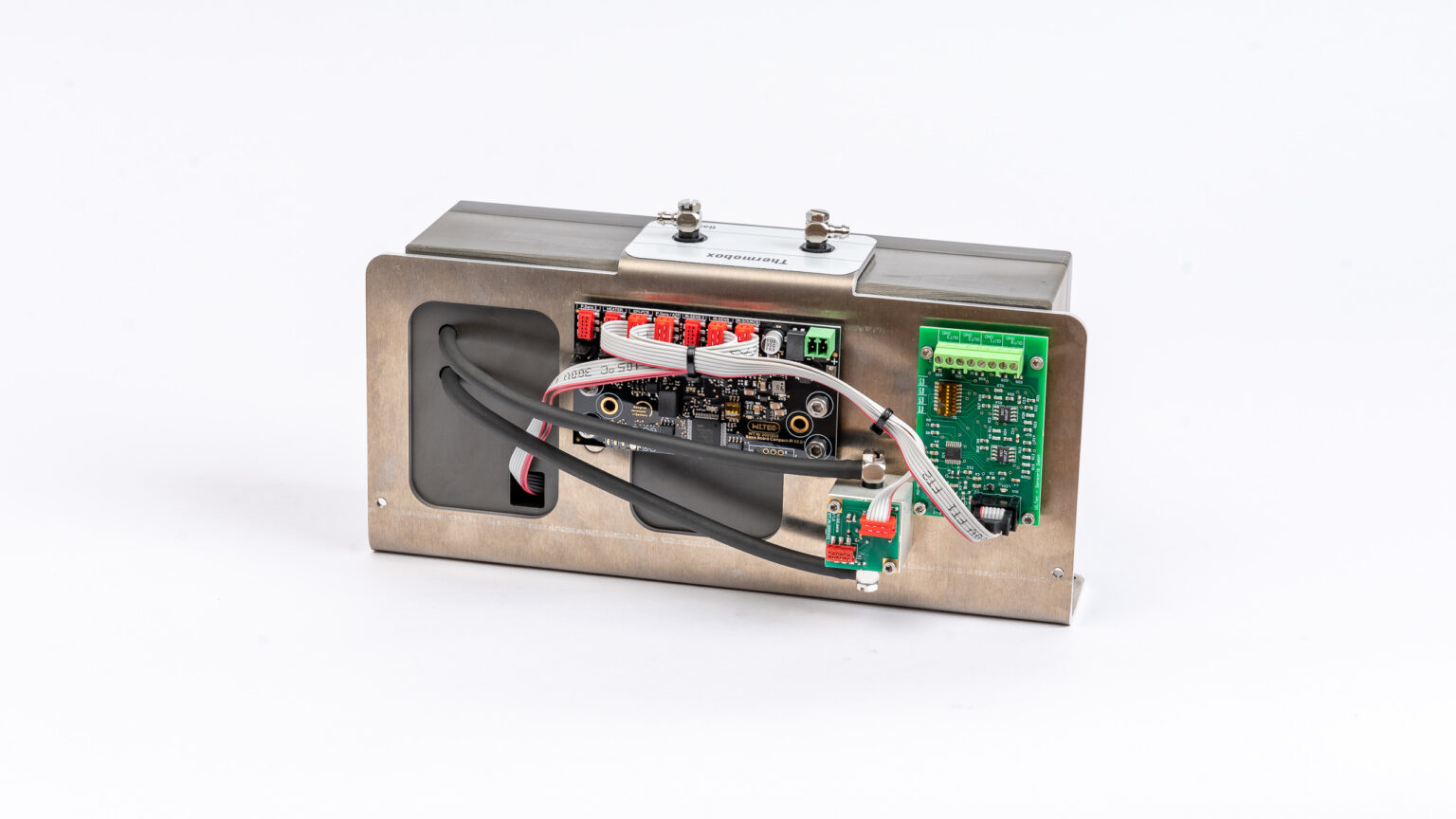

ULTRA.sens® AK100 TBH
Product code
ULTRA.sens® AK100 TBH
Manufacturer
The ULTRA.sens is the world’s first OEM gas measurement module based on miniaturized UV LEDs. The stability and lifetime of these UV-LEDs enables high-precision gas analyses down to the ppb range. By using two UV-LEDs 2 gases can be detected simultaneously. With this approach, 2 measuring ranges from ppm to Vol.-% can also be realized.
In the spectral range from 200 nm to 500 nm, nitrogen oxides (NO+NO2), aromatic hydrocarbons, hydrogen sulphide, ozone, sulphur dioxide and chlorine can be reliably detected with this novel sensor platform.
Applications:
Environmental and Process Measurement Technology (CEM)
Engine development
TOC analyzers
Elemental analysis
Industrial gas analysis
Natural gas/biogas analysis
Process measurement technology
Biogas research
Measurement of NO,SO2, NO2 in combination or as single gas module are possible
Accuracy
±2 % F.S.
Energetic consumption
< 10 Watt
Output current
RS232, Can, Analogic
Reading per seconds
3 seconds (T90)
Measurement range
<100 Vol.%
Temperature range
5°C – 45°C
Target Gas
Multigas
list_of_measurements.pdf38.64 KB
data-sheet-ultra-sens-ak100-tbh.pdf432.32 KB
