S-110H
Product code
S-110H
Manufacturer

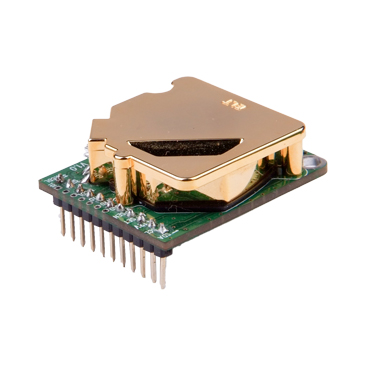

S-110H model is one of the world’s smallest single beam models which main features are Consistent stability and Temperature Change Effect Compensation.
Accuracy of ± 50 ppm ± 3%. Measurement ranges of 0-2000 ppm, 0-3000 ppm, 0-5000 ppm and 0-10000 ppm.
'G' version available for humidity resistance up to 99% RH for Application of Agricultural GreenHouse, Stock Raising,etc.
Accuracy
± 50ppm ± 3% of reading
Power Supply
12.0 Vdc
Dimension
39 x 32 x 13.1 mm
Measurement range
0-2000 ppm
0-3000 ppm
0-5000 ppm
0-10000 ppm
Humidity range
0-99% RH
0-95% RH
Target Gas
Carbon dioxide
Operating temperature
-10°C / +60°C
Output
UART
I2C
PWM
Analog (0.5V - 4.5V)
S-110H Datasheet974.98 KB
