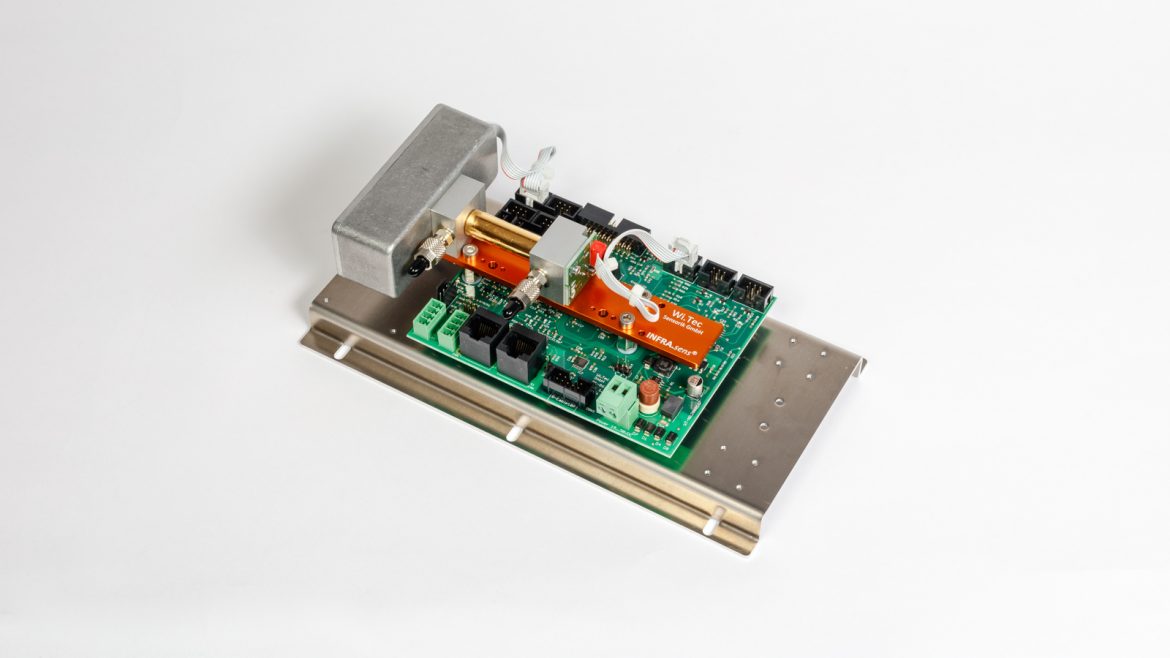

Infra.Sens AK50

Infra.Sens AK50
Infra.Sens AK50
Product code
Infra.Sens AK50
Manufacturer
The INFRA.sens was specially developed for high-quality NDIR gas analysis. In the design phase, special emphasis was placed on high stability and a low detection limit.

The INFRA.sens was specially developed for high-quality NDIR gas analysis. In the design phase, special emphasis was placed on high stability and a low detection limit. With the use of high-performance light emitting diodes (IR-LED) and thermal micro radiators, which were adapted to the needs of gas measurement technology, these goals were achieved in full.

In the spectral range from 2 μm to 12 μm, carbon dioxide, carbon monoxide, hydrocarbons and nitrous oxide can be reliably detected up to the ppm range with this new sensor platform.

Applications:

  • Environmental and Process Measurement Technology (CEM)
  • Engine development
  • TOC analyzers
  • Elemental analysis
  • Industrial gas analysis
  • Natural gas/biogas analysis
  • Process measurement technology
  • Biogas research
  • Measurement of CO2, CO, CH4, SF6, N2O, HC, H2O, CF4 in combination (up to 3 gases ) or as single gas module are possible



Accuracy
±2 % F.S.
Energetic consumption
< 10 Watt

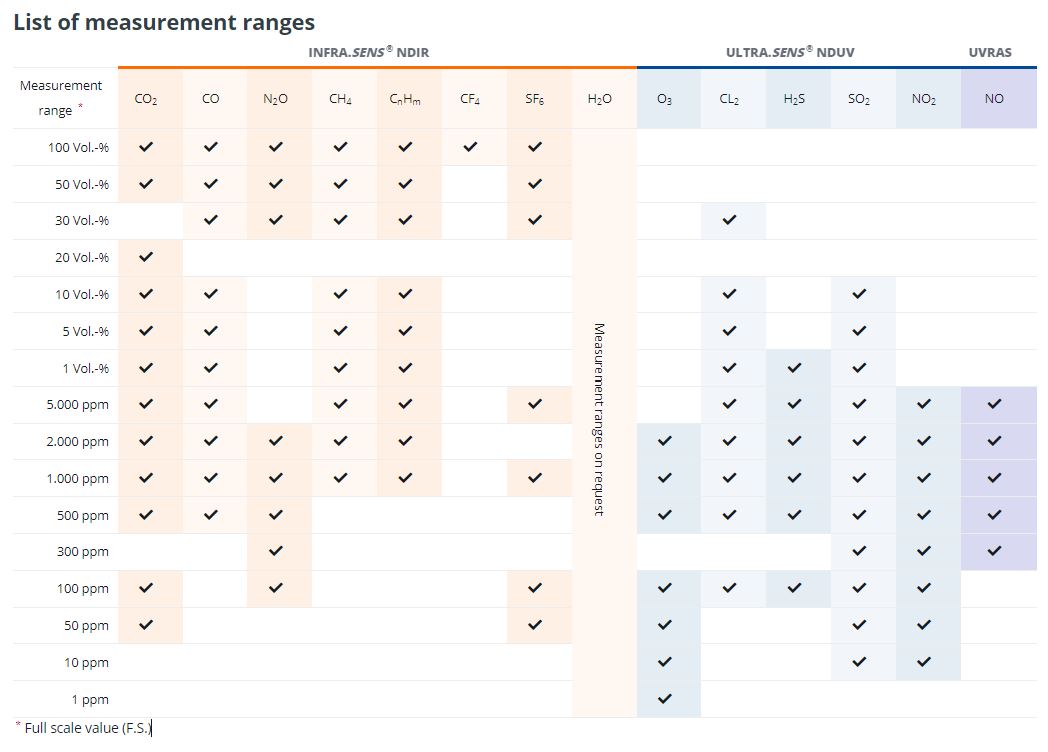

Measurement range
< 20 Vol.%
Temperature range
5°C – 45°C
Target Gas
Multigas
Response Time
3 seconds (T90)
Output
RS232, Can, Analog
