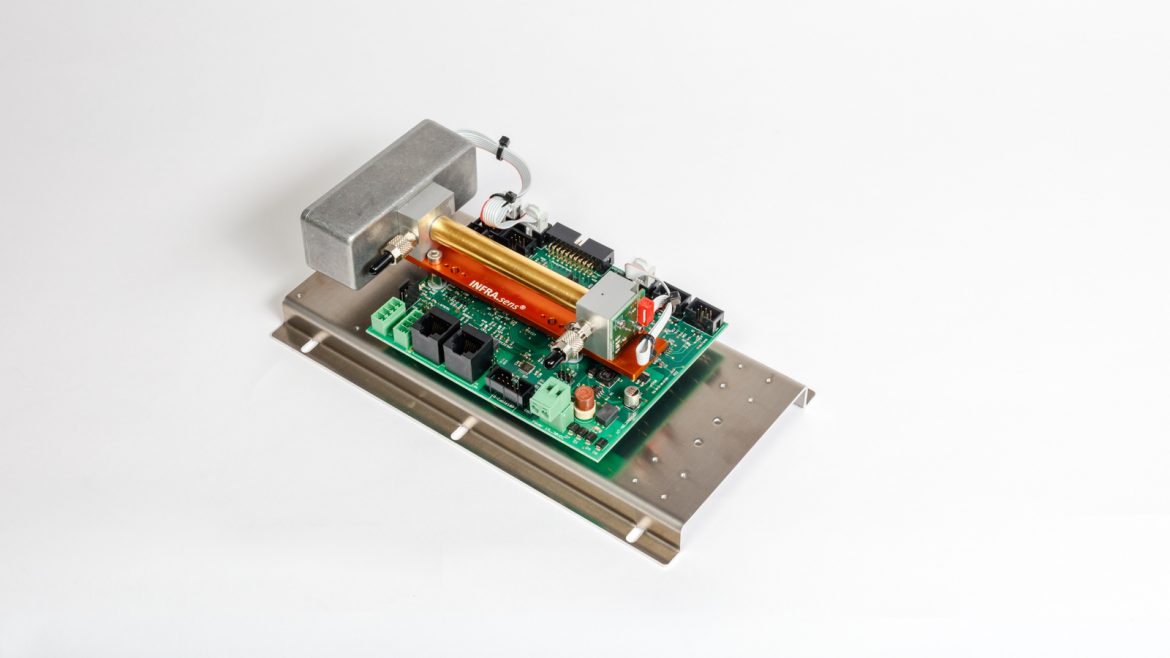

Infra.Sens AK100
Product code
Infra.Sens AK100
Manufacturer
The INFRA.sens was specially developed for high-quality NDIR gas analysis. In the design phase, special emphasis was placed on high stability and a low detection limit. With the use of high-performance light emitting diodes (IR-LED) and thermal micro radiators, which were adapted to the needs of gas measurement technology, these goals were achieved in full.
In the spectral range from 2 μm to 12 μm, carbon dioxide, carbon monoxide, hydrocarbons and nitrous oxide can be reliably detected up to the ppm range with this new sensor platform.
Applications:
- Environmental and Process Measurement Technology (CEM)
- Engine development
- TOC analyzers
- Elemental analysis
- Industrial gas analysis
- Natural gas/biogas analysis
- Process measurement technology
- Biogas research
- Measurement of CO2, CO, CH4, SF6, N2O, HC, H2O, CF4 in combination (up to 3 gases) or as single gas module are possible
Accuracy
±2 % F.S.
Energetic consumption
< 10 Watt
Measurement range
< 1 Vol.%
Temperature range
5°C – 45°C
Target Gas
Multigas
Response Time
3 seconds (T90)
Output
RS232, Can, Analog
