EDI030106NG
Product code
EDI030106NG
Manufacturer

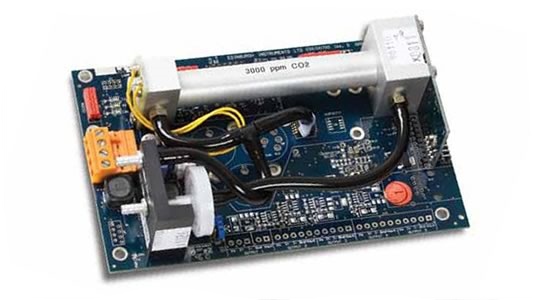

The Gascard NG is a OEM board with infrared sensor for the measuring of CO2.
This board, produced by Edinburgh Sensors, has beed developed to allow an easy integration in several applications in gas monitoring field and in particular for applications which need high quality, long term stability and precise measures. The board is temperature compensate and it has RS232 interface. As optional choice there is also the Ethernet interface.
The model EDI030106NG has range 0-5%.
Power Supply
24V DC (7-30V)
Measurement range
0-5%
Target Gas
Carbon dioxide
Output
0-20 mA
Scheda tecnica252.01 KB
