DUT-2000
Product code
DUT-2000
Manufacturer

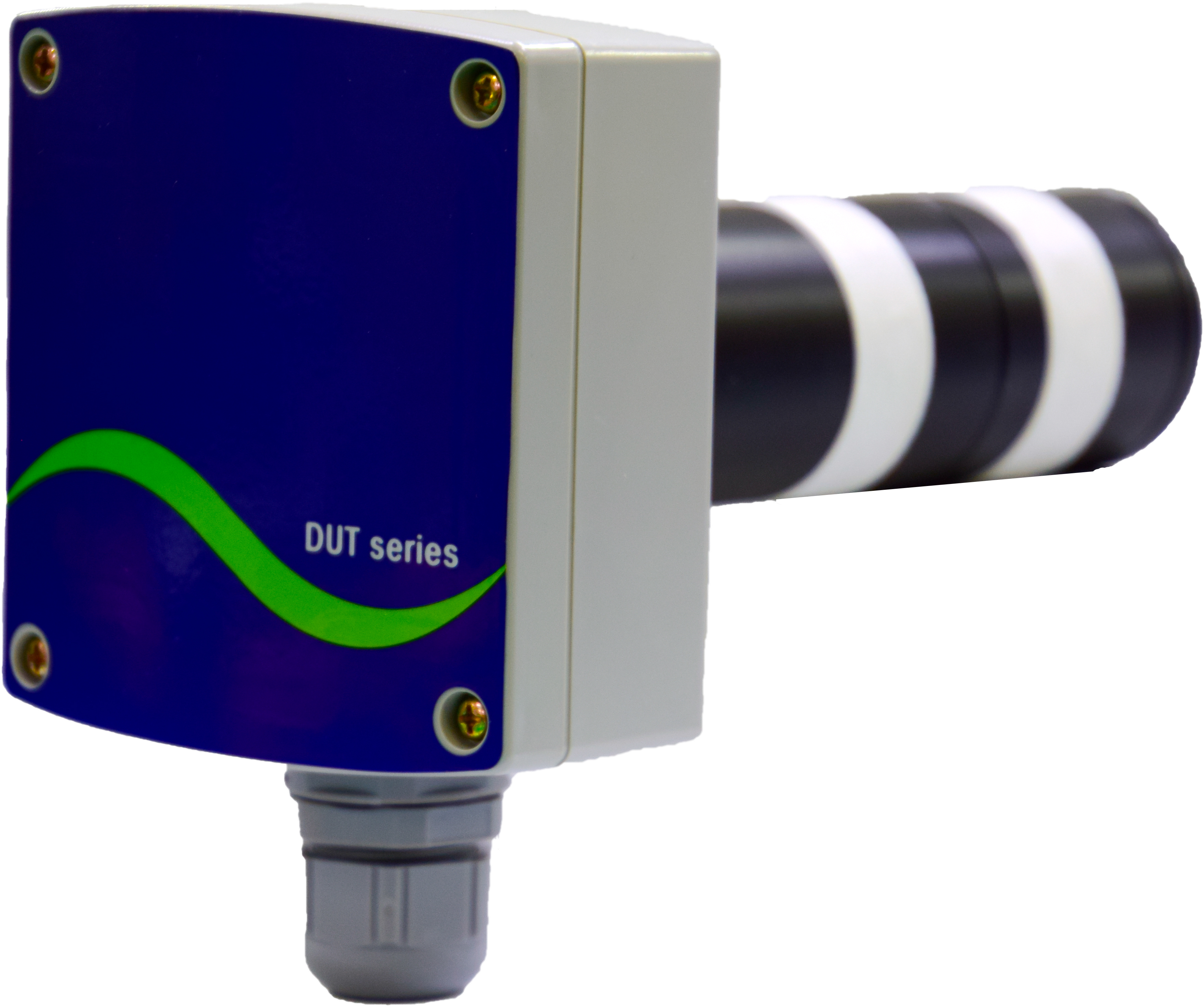

The DUT-2000 is equipped with a probe which allows to be Duct-mountable for monitoring CO2 ppm concentration values inside ducts and send signal to remote host.
It is suitable for domestic, industrial and agricoltural applications thanks to its various technical specifications regarding CO2 Measurement range, Operation Temperature range and Accuracy.
This transmitter is available with different kind of output as 4-20mA or 2~10V DC which allows the connection with industrial control systems. In addition it is possible to request with the RS485 Mod-bus protocol and an intergated LCD display.
Versions available

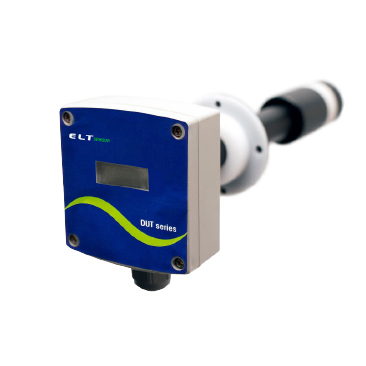

'L' : with dispaly LCD
'M' : RS485-Modbus
'HT' : Temperature and relative Humidity added
Accuracy
± 30ppm ± 3% of reading
Power Supply
24V AC/DC
Dimension
85 x 115 x 45 mm, 250 x 40 mm
Measurement range
0-2000 ppm
0-3000 ppm
0-5000 ppm
0-10000 ppm
0-2%
0-3%
0-5%
Humidity range
0-99% RH
Target Gas
Carbon dioxide
Operating temperature
-10°C / +50°C
Output
4-20 mA
2-10 Vdc
Relay
RS485
Datasheet519.16 KB
