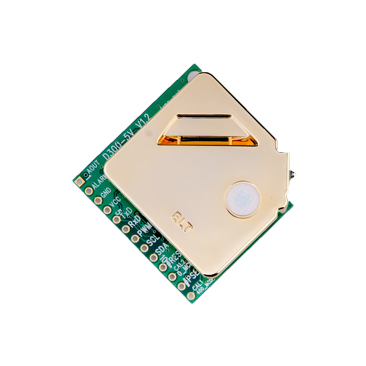

D-300
Product code
D-300
Manufacturer
NDIR module for the measure of CO2. Its Consistent Stability and Temperature Change Effect Compensation are much favored by users in Stock shelters, greenhouse, hospitals etc.
Accuracy of ± 300ppm ± 3% of reading available only for high concentration measurement ranges of 0-2%, 0-3%, 0-5%, 0-7% and 0-10%.
Available in both 'G' and 'L' versions:
'G' version: resistant up to 99% Humidityfor Application of Agricultural Green House, Stock Raising,etc
'L' version: sleep mode is added on sensors for Low power, which consume < 0.5mA or < 0.3mA
Accuracy
± 30ppm ± 3% of reading
± 300ppm ± 3% of reading
Power Supply
5.0 Vdc
Dimension
33 x 33 x 13.1 mm
Measurement range
0-2000 ppm
0-3000 ppm
0-5000 ppm
0-10000 ppm
0-2%
0-3%
0-5%
0-7%
0-10%
Humidity range
0-95% RH
0-99% RH
Target Gas
Carbon dioxide
Operating temperature
-20°C / +50°C
Output
I2C
UART
Analog (0.5V - 4.5V)
PWM
Datasheet698.56 KB
