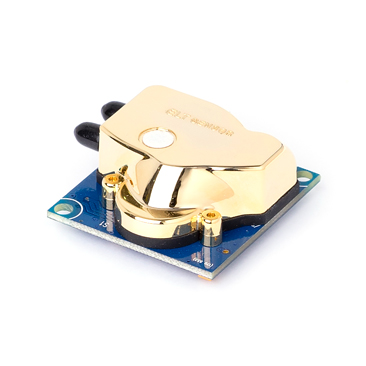

CH4-LD-3V
Product code
CH4-LD-3V
Manufacturer
NDIR module diffusion type for the measure of CH4. Thanks to its consistent Stability through the life cycle and Temperature change Effect Compensation, it is incomparably favored by industrial field experts carrying various flammable, explosive, and hazard gases.
Measurement ranges: 0-5000 ppm (10% LEL) e 0-50000 ppm (100% LEL).
Accuracy: ± 3 F.S.
Available in 'G' version which make it resistance up to 99% Humidity is added on sensors for Application of Green House.
Accuracy
± 3% F.S.
Power Supply
3.3 Vdc
Dimension
40 x 38 x 18.5 mm
Measurement range
0-5000 ppm
0-50000 ppm
Humidity range
0-95% RH
0-99% RH
Target Gas
Methane
Operating temperature
-20°C / +50°C
Output
I2C
Analog (0.5V - 3.0V)
UART
Datasheet431.11 KB
