CD-100
Product code
CD-100
Manufacturer

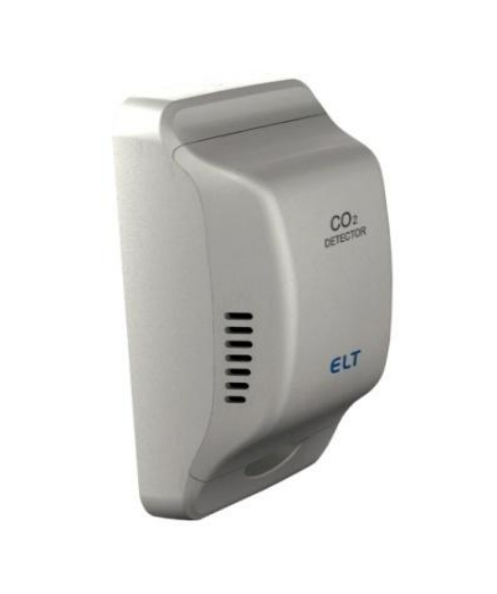

CD-100 Series are one board type CO2 transmitters with either 3-wire or 4-wire, giving various current or voltage outputs selection : those setting can be changed at customer field as well.
Measurement ranges: 0-2000 ppm, 0-3000 ppm, 0-5000 ppm and 0-10000 ppm.
Accuracy: ± 30ppm ± 5% of reading.
Versions available
'G' : resist up to 99% R.H.

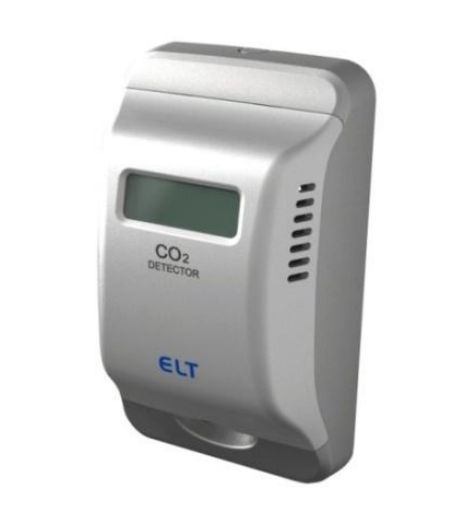

'L' : with dispaly LCD
'M' : RS485-Modbus
'HT' : Temperature and relative Humidity added
All versions are available in 'BZ' version for a Operating Temperature range of -40°C / 40°C
Accuracy
± 30ppm ± 5% of reading
Power Supply
24 VDC
24 VAC
Dimension
123 x 70 x 43 mm
Measurement range
0-2000 ppm
0-3000 ppm
0-5000 ppm
0-10000 ppm
Humidity range
0-95% RH
0-99% RH
Target Gas
Carbon dioxide
Operating temperature
-10°C / +60°C
-40°C / 40°C
Output
RS485
0-20 mA
4-20 mA
0-10 Vdc
2-12 Vdc
Datasheet CD-100LG-BZ248.26 KB
Datasheet CD-100LG340.38 KB
Datasheet CD-100MLG-HT448.46 KB
Datasheet CD-100MLG428.86 KB
