C4H10-S3-3V
Product code
C4H10-S3-3V
Manufacturer

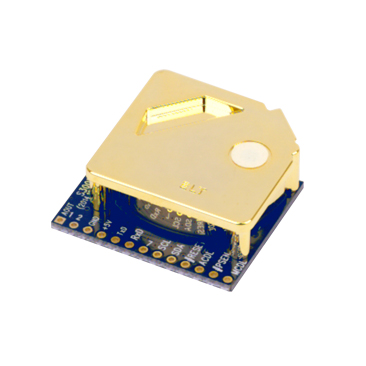

NDIR module diffusion type for the measure of Butane. Thanks to its consistent Stability through the life cycle and Temperature change Effect Compensation, it is incomparably favored by industrial field experts carrying various flammable, explosive, and hazard gases.
Measurement ranges: 0-100% (0-18000 ppm optional)
Accuracy: ± 2 F.S
Versions available:
'G' version to make it resistance up to 99% Humidity is added on sensors for Application of Green House.
Accuracy
± 2% F.S.
Power Supply
3.3 Vdc
Dimension
33 x 33 x 13.1 mm
Measurement range
0-100% LEL
0-18000 ppm
Humidity range
0-95% RH
0-99% RH
Target Gas
Butano
Operating temperature
-20°C / +50°C
Output
I2C
PWM
UART
Analog (0.5V - 3.0V)
C4H10-S3-3V Datasheet798.75 KB
