C2H4-S3
Product code
C2H4-S3
Manufacturer

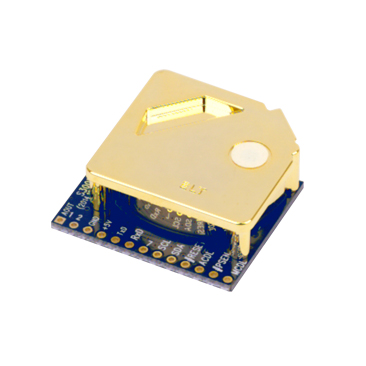

NDIR module diffusion type for the measure of Ethylene. Thanks to its consistent Stability through the life cycle and Temperature change Effect Compensation, it is incomparably favored by industrial field experts carrying various flammable, explosive, and hazard gases.
Measurement ranges: 0-100% (0-27000 ppm optional)
Accuracy: ± 3 F.S
Versions available:
'G' version to make it resistance up to 99% Humidity is added on sensors for Application of Green House.
Accuracy
± 3% F.S.
Power Supply
5.0 Vdc
Dimension
33 x 33 x 13.1 mm
Measurement range
0-100% LEL
0-27000 ppm
Humidity range
0-95% RH
0-99% RH
Target Gas
Ethylene
Operating temperature
-20°C / +50°C
Output
I2C
UART
PWM
Analog (0.5V - 4.5V)
C2H4-S3 Datasheet789.46 KB
