FCB-EV9500M
Product code
FCB-EV9500M
Manufacturer

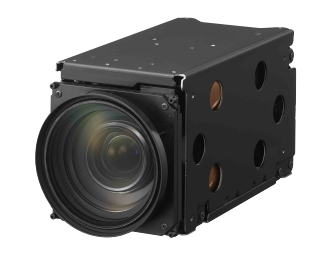

The Full HD camera block FCB-EV9500M features an innovative larger image sensor (1/1.18) together with an enhanced 30x optical zoom in a compact size.
This model can be integrated in critical visibility conditions thanks to the super stabilizer (Super or Super+ mode).
By using a compact lens designed for resolutions up to 8M, the camera maximises the coverage of the 4M sensor, achieving maximum sharpness and a significant reduction in chromatic aberration output.
Among the FCB-EV9500x-Series FCB-EV9500M has a MIPI output.
Auto ICR
Yes (B&W - Colour)
Family
9500 Series
Minimum lighting
High Sensitivity Mode ON - ICR OFF: 0.009 lx (Shutter Speed: 1/30 s), 0.0012 lx (Shutter Speed: 1/4 s or 1/3 s)
High Sensitivity Mode ON - ICR ON: 0.00008 lx (Shutter Speed: 1/30 s), 0.000005 lx (Shutter Speed: 1/4 s or 1/3 s, 30%)
High Sensitivity Mode OFF - ICR OFF: 0.09 lx (Shutter Speed: 1/30 s), 0.012 lx (Shutter Speed: 1/4 s or 1/3 s)
High sensitivity Mode OFF - ICR ON: 0.00063 lx (Shutter Speed: 1/30 s)
Lens
30x enhanced optical
Effective Pixels
4.17 Megapixel
Image sensor
1/1.8-type STARVIS CMOS
Image stabilization
Super image stabilizer (Super / Super+)
Wide D
Yes
Digital Zoom
12x
Stable Zoom
Yes
