AH30R-100KG
Product code
AH30R-100KG
Manufacturer

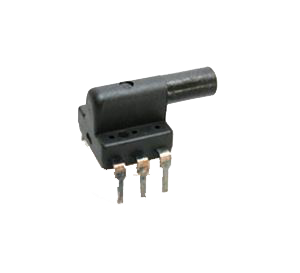

Piezoresistive pressure sensor, temperature compensated, calibrated analog output and DIP mounting.
Fujikura pressure sensor is composed of a silicon piezo-resistive pressure sensing chip and a signal conditioning integrated circuit.
The signal from the sensing chip is amplified, temperature compensated, calibrated, and finally made available as analog output signal that is proportional to the applied pressure.
Accuracy
+/- 1.5% FS
Temperature compensation
0-60°C
Pressure port length
6 mm
Mounting
DIP
Pin orientation
Opposite
Pressure port
Horizontal
Pressure Type
Gauge
Measurement range
100 kPa
Supply voltage
5.0 Vdc
Datasheet1.17 MB
