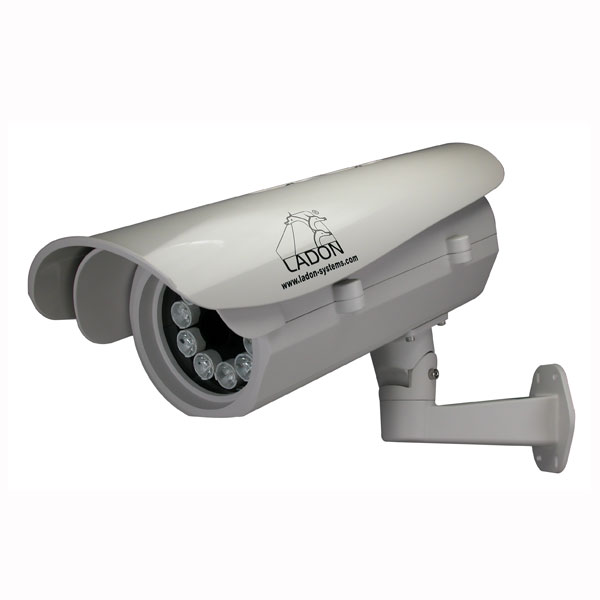

PVZoom 5-15-485
Product code
PVZoom 5-15-485
Integrated license plate reader camera with transmission on data network with RS485 interface and PAL output.
Anti-glare system
10-25.0mm motorized lens
optical filters and IR illuminator with continuously variable stroboscopic control
25 ° lighting angle
Remotely adjustable zoom, focus and IR illumination intensity
Interface RS485 (requires optional keyboard)
Optimal shooting distance from 5m to 15m for the vehicle back plate, from 5 to 12m for the vehicle front plate (Italian size plates); Maximum vehicle speed 100 km/h
Power supply 230Vac 30W
Dimensions 178mm x 154mm x 450mm (HxWxD)
IR illumination angle
25°
Working distance (rear plate)
5-15 metri
Control mode
RS485 Serial
OCR resolution
Full-D1
Supply voltage
230Vac
Video output
PAL
Maximum vehicle speed
100km/h
Scheda tecnica3.11 MB
