PVZoom 3-6-485
Product code
PVZoom 3-6-485

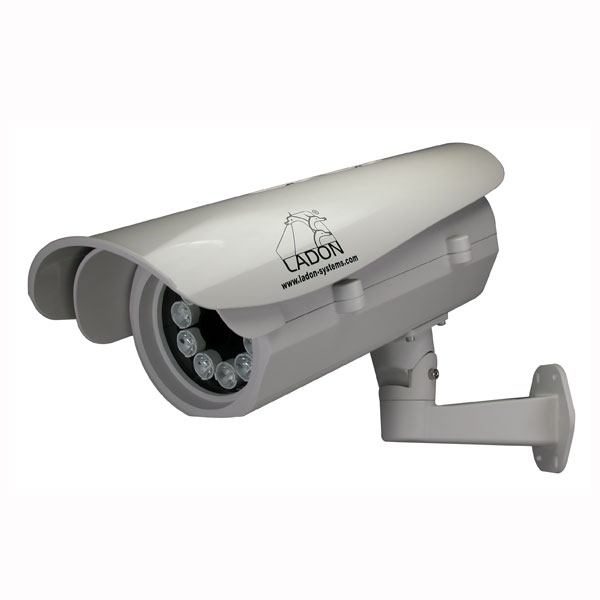

Integrated license plate reader camera with RS485 interface and PAL output.
Anti-glare system
5-15.0mm motorized lens
optical filters and IR illuminator with continuously variable stroboscopic control
50 ° lighting angle
Remotely adjustable zoom, focus and IR illumination intensity
Interface RS485 (requires optional keyboard)
Optimal shooting distance from 3m to 6m for the vehicle back plate, from 3 to 5m for the vehicle front plate (Italian size plates); Maximum vehicle speed 30 km/h
Power supply 230Vac 30W
Dimensions 178mm x 154mm x 450mm (HxWxD)
IR illumination angle
50°
Working distance (rear plate)
3-6 metri
Control mode
RS485 Serial
OCR resolution
Full-D1
Supply voltage
230Vac
Video output
PAL
Maximum vehicle speed
30km/h
