Discontinued
PVZoom 15-25-485
Product code
PVZoom 15-25-485

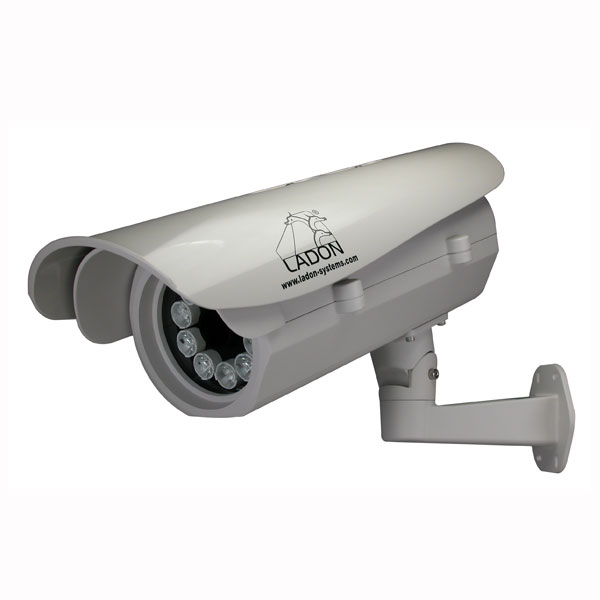

Integrated license plate reader camera with RS485 interface and PAL video output.
Anti-glare system
25-50.0mm motorized lens
optical filters and IR illuminator with continuously variable stroboscopic control
10 ° lighting angle
Remotely adjustable zoom, focus and IR illumination intensity
Interface RS485 (requires optional keyboard)
Optimal shooting distance from 15m to 25m for the vehicle back plate, from 12 to 20m for the vehicle front plate (Italian size plates);
Maximum vehicle speed 150 km/h
Power supply 230Vac 30W
Dimensions 178mm x 154mm x 450mm (HxWxD)
IR illumination angle
10°
Working distance (rear plate)
15-25 metri
Control mode
RS485 Serial
OCR resolution
Full-D1
Supply voltage
230Vac
Video output
PAL
Maximum vehicle speed
150km/h
Scheda tecnica549.87 KB
