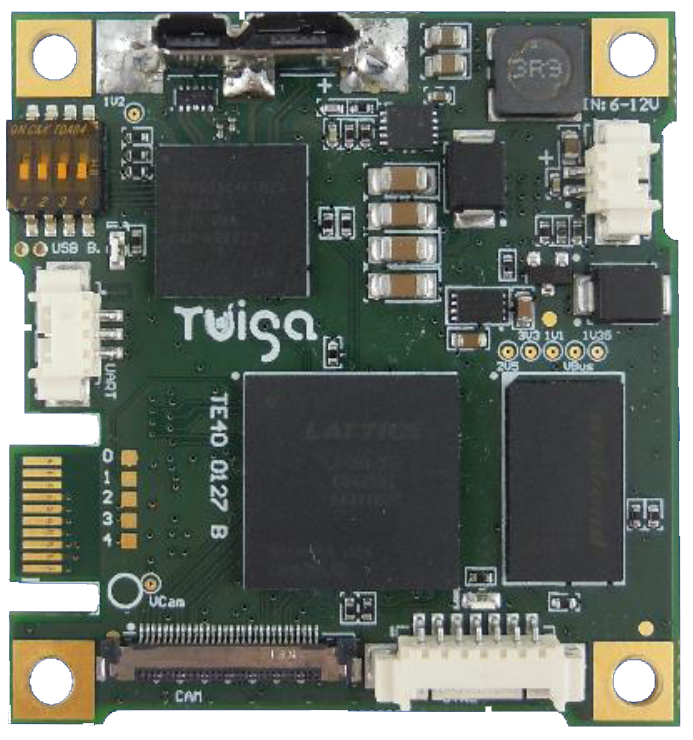

High-performance video capture Twiga USB3 4K interface board for Sony camera block.
It allows you to capture uncompressed video stream from Sony 4K camera blocks and transmit it over a single USB3 cable. A simultaneous HDMI output is also available to display the 4K video on a monitor.
FEATURES:
- Uncompressed 4K video stream
- Video resolution up to 2160p30
- UVC compliant
- Communication: USB CDC (COM port / tty), VISCA via UART, GPIOs
- HDMI 2.0 output
- HDMI loop-through interfacex
- Camera external power supply 6-12 VDC
Power Supply
Powered from USB3.0
6 - 12 VDC
Connector
Micro USB3.0 B-type
Dimension (mm)
48 x 45 x 18
Weight (grams)
24
Output protocol
USB 3.0
Working temperature
0°C a 60°C
TV80 0099 Datasheet989.26 KB
