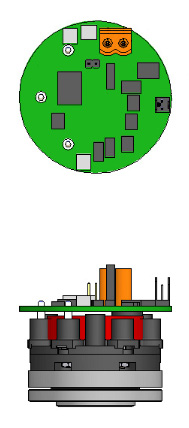

T3SH

Sensor Type Used: 3SH
Filter: None
Output: 4-20 mA d.c.
Response Time (T90): <15 Seconds at 20°C
Resolution: 0.1 ppm
Zero Shift (-20°C to +40°C): <0.1 ppm equivalent
Repeatability: 2% of signal
Linearity: Linear

Power Supply Required: 10 - 35 VDC single-ended
Output Impedance: 4 MΩ
Calibration: Via built-in span and zero potentiometers

Mounting: Via mounting nose supplied
Weight: 58 g including mounting accessory
Position Sensitivty: None

Operating Temperature Range: -20°C to +50°C
Recommended Storage Temp: 0°C to 20°C
Temperature Compensation: None
Operating Pressure Range: Atmospheric ± 10%
Pressure Coefficient: No data
Operating Humidity Range: 15 - 90% RH non-condensing

Long Term Sensitivity Drift: <2% signal loss/month
Expected Operating Life: Two years in air
Storage Life: 6 months in CTL container
Standard Warranty: 12 months from date of despatch
